YOLO-style training pipeline with instance_binding

!pip install -q 'albumentationsx>=2.2.2' matplotlib

[notice] A new release of pip is available: 25.0 -> 26.0.1
[notice] To update, run: pip install --upgrade pip

from __future__ import annotations

import io
import urllib.request
import zipfile
from pathlib import Path

import albumentations as A
import cv2
import matplotlib.patches as mpatches
import matplotlib.pyplot as plt
import numpy as np

print("albumentations", A.__version__)

albumentations 2.2.2

DATA_ROOT = Path("../data/coco128-seg")
DATASET_URL = "https://www.ultralytics.com/assets/coco128-seg.zip"

COCO_NAMES = [
    "person", "bicycle", "car", "motorcycle", "airplane", "bus", "train", "truck", "boat", "traffic light",
    "fire hydrant", "stop sign", "parking meter", "bench", "bird", "cat", "dog", "horse", "sheep", "cow",
    "elephant", "bear", "zebra", "giraffe", "backpack", "umbrella", "handbag", "tie", "suitcase", "frisbee",
    "skis", "snowboard", "sports ball", "kite", "baseball bat", "baseball glove", "skateboard", "surfboard",
    "tennis racket", "bottle", "wine glass", "cup", "fork", "knife", "spoon", "bowl", "banana", "apple",
    "sandwich", "orange", "broccoli", "carrot", "hot dog", "pizza", "donut", "cake", "chair", "couch",
    "potted plant", "bed", "dining table", "toilet", "tv", "laptop", "mouse", "remote", "keyboard",
    "cell phone", "microwave", "oven", "toaster", "sink", "refrigerator", "book", "clock", "vase",
    "scissors", "teddy bear", "hair drier", "toothbrush",
]


def ensure_dataset() -> Path:
    if DATA_ROOT.exists() and any(DATA_ROOT.glob("images/train2017/*.jpg")):
        return DATA_ROOT
    DATA_ROOT.parent.mkdir(parents=True, exist_ok=True)
    with urllib.request.urlopen(DATASET_URL) as resp:
        buf = io.BytesIO(resp.read())
    with zipfile.ZipFile(buf) as zf:
        zf.extractall(DATA_ROOT.parent)
    return DATA_ROOT


def load_sample(image_path: Path) -> tuple[np.ndarray, list[dict]]:
    image = cv2.cvtColor(cv2.imread(str(image_path)), cv2.COLOR_BGR2RGB)
    h, w = image.shape[:2]
    label_path = DATA_ROOT / "labels" / "train2017" / (image_path.stem + ".txt")
    instances: list[dict] = []
    if not label_path.exists():
        return image, instances
    for line in label_path.read_text().splitlines():
        parts = line.split()
        if len(parts) < 7:
            continue
        class_idx = int(parts[0])
        coords = np.array(parts[1:], dtype=np.float32).reshape(-1, 2)
        coords[:, 0] *= w
        coords[:, 1] *= h
        polygon = coords.round().astype(np.int32)
        mask = np.zeros((h, w), dtype=np.uint8)
        cv2.fillPoly(mask, [polygon], 1)
        if mask.sum() == 0:
            continue
        ys, xs = np.where(mask > 0)
        bbox = np.array([xs.min(), ys.min(), xs.max() + 1, ys.max() + 1], dtype=np.float32)
        instances.append({
            "mask": mask,
            "bbox": bbox,
            "bbox_labels": {"class_name": COCO_NAMES[class_idx]},
        })
    return image, instances


ensure_dataset()
image_paths = sorted(DATA_ROOT.glob("images/train2017/*.jpg"))
print(f"{len(image_paths)} images")

128 images

POOL_SIZE = 16
pool: list[tuple[np.ndarray, list[dict]]] = []
for p in image_paths:
    image, instances = load_sample(p)
    if len(instances) >= 1:
        pool.append((image, instances))
    if len(pool) >= POOL_SIZE:
        break
print(f"pool: {len(pool)} samples, {sum(len(i) for _, i in pool)} total instances")

pool: 16 samples, 72 total instances

transform = A.Compose(
    [
        A.Mosaic(
            grid_yx=(2, 2),
            target_size=(640, 640),
            cell_shape=(640, 640),
            fit_mode="cover",
            p=1.0,
        ),
        A.Affine(
            scale=(0.9, 1.1),
            rotate=(-10, 10),
            shear=(-2, 2),
            translate_percent=(-0.05, 0.05),
            p=0.5,
        ),
        A.Perspective(
            scale=(0.02, 0.05),
            keep_size=True,
            fit_output=False,
            p=0.3,
        ),
        A.CopyAndPaste(
            scale_range=(0.4, 1.0),
            blend_mode="gaussian",
            blend_sigma_range=(1.0, 2.0),
            min_visibility_after_paste=0.1,
            p=0.7,
        ),
        A.HorizontalFlip(p=0.5),
        A.HueSaturationValue(
            hue_shift_range=(-15, 15),
            sat_shift_range=(-40, 40),
            val_shift_range=(-25, 25),
            p=1.0,
        ),
        A.RandomBrightnessContrast(
            brightness_range=(-0.2, 0.2),
            contrast_range=(-0.2, 0.2),
            p=0.5,
        ),
    ],
    bbox_params=A.BboxParams(
        coord_format="pascal_voc",
        label_fields=["class_name"],
        min_visibility=0.1,
        min_area=8.0,
    ),
    instance_binding=["masks", "bboxes"],
    seed=42,
)

def make_call_data(rng: np.random.Generator, n_mosaic: int = 3, n_paste: int = 4) -> dict:
    """Sample a primary + Mosaic neighbors + CopyAndPaste donors from the pool."""
    indices = rng.choice(len(pool), size=1 + n_mosaic, replace=False)
    primary_image, primary_instances = pool[int(indices[0])]

    mosaic_metadata = []
    for idx in indices[1:]:
        img, instances = pool[int(idx)]
        if not instances:
            continue
        mosaic_metadata.append({
            "image": img,
            "masks": np.stack([i["mask"] for i in instances]),
            "bboxes": np.stack([i["bbox"] for i in instances]),
            "bbox_labels": {"class_name": [i["bbox_labels"]["class_name"] for i in instances]},
        })

    flat = [(img, inst) for img, instances in pool for inst in instances]
    paste_indices = rng.choice(len(flat), size=min(n_paste, len(flat)), replace=False)
    copy_paste_metadata = [
        {
            "image": flat[int(k)][0],
            "mask": flat[int(k)][1]["mask"],
            "bbox_labels": {"class_name": flat[int(k)][1]["bbox_labels"]["class_name"]},
        }
        for k in paste_indices
    ]

    return {
        "image": primary_image,
        "instances": primary_instances,
        "mosaic_metadata": mosaic_metadata,
        "copy_paste_metadata": copy_paste_metadata,
    }

_RNG = np.random.default_rng(0)
_COLOR_CACHE: dict[int, tuple[float, float, float]] = {}


def _color_for(idx: int) -> tuple[float, float, float]:
    if idx not in _COLOR_CACHE:
        _COLOR_CACHE[idx] = tuple(_RNG.uniform(0.3, 1.0, size=3))
    return _COLOR_CACHE[idx]


def draw_instances(ax: plt.Axes, image: np.ndarray, instances: list[dict], title: str = "") -> None:
    overlay = image.astype(np.float32).copy()
    for i, inst in enumerate(instances):
        color = np.array(_color_for(i)) * 255
        mask = inst.get("mask")
        if mask is not None:
            blend = (mask > 0)[..., None]
            overlay = np.where(blend, 0.5 * overlay + 0.5 * color, overlay)
    ax.imshow(np.clip(overlay, 0, 255).astype(np.uint8))
    for i, inst in enumerate(instances):
        x1, y1, x2, y2 = inst["bbox"]
        color = _color_for(i)
        ax.add_patch(mpatches.Rectangle((x1, y1), x2 - x1, y2 - y1, fill=False, edgecolor=color, linewidth=1.5))
        label = inst.get("bbox_labels", {}).get("class_name", "?")
        ax.text(x1, max(0, y1 - 4), label, color="white", fontsize=8,
                bbox=dict(facecolor=color, alpha=0.8, edgecolor="none", pad=1))
    ax.set_title(title)
    ax.axis("off")

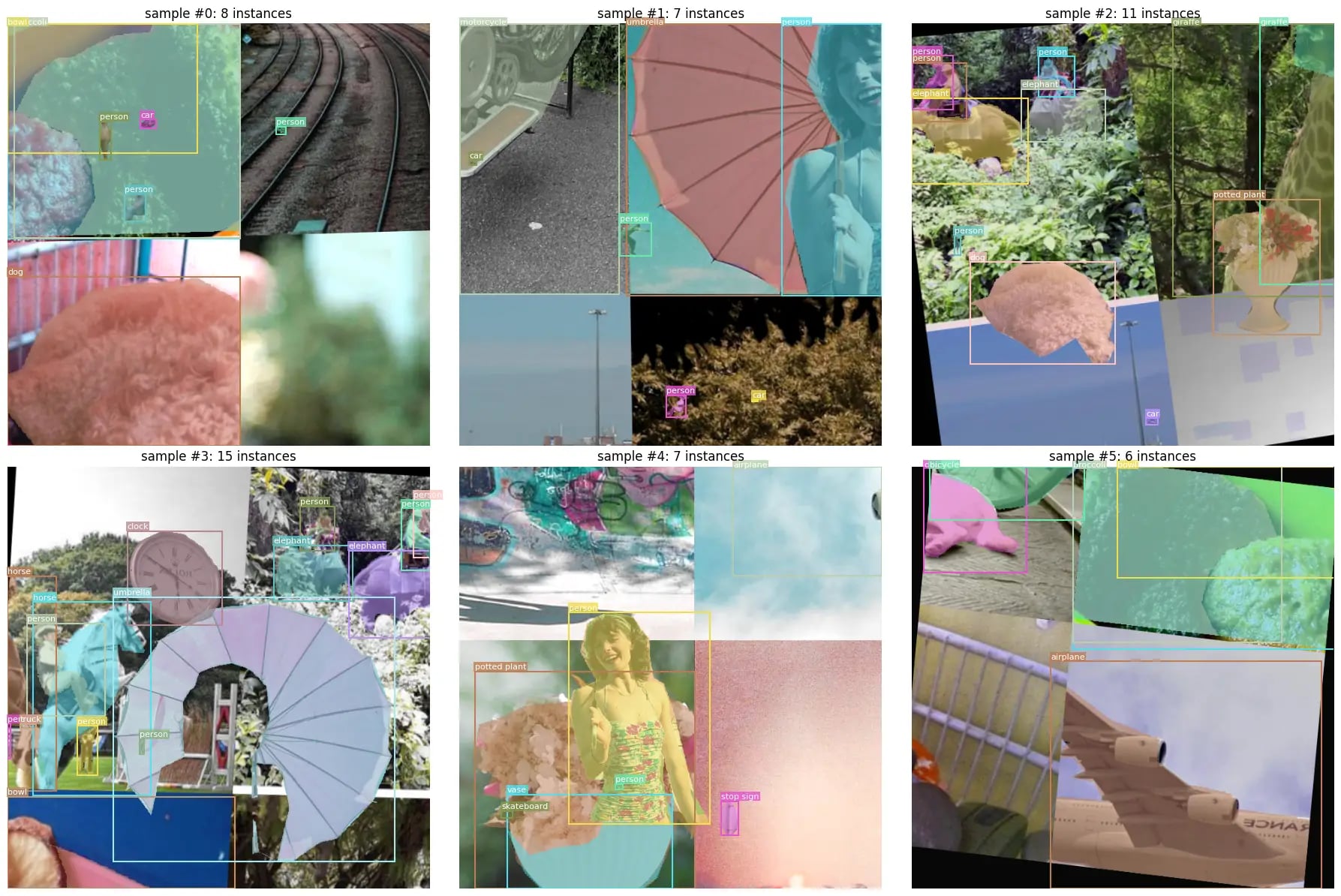

rng = np.random.default_rng(2026)
fig, axes = plt.subplots(2, 3, figsize=(18, 12))
axes = axes.ravel()
for i, ax in enumerate(axes):
    transform.set_random_seed(int(rng.integers(0, 1_000_000)))
    data = make_call_data(rng)
    out = transform(**data)
    draw_instances(
        ax,
        out["image"],
        out["instances"],
        title=f"sample #{i}: {len(out['instances'])} instances",
    )
plt.tight_layout()
plt.show()

rng = np.random.default_rng(0)
transform.set_random_seed(0)
data = make_call_data(rng)
out = transform(**data)

print(f"image: {out['image'].shape}  dtype={out['image'].dtype}")
print(f"instances: {len(out['instances'])}")
for i, inst in enumerate(out["instances"]):
    print(
        f"  [{i}] keys={sorted(inst.keys())}  "
        f"mask={inst['mask'].shape}  bbox={inst['bbox'].round(1).tolist()}  "
        f"label={inst['bbox_labels']}",
    )

image: (640, 640, 3)  dtype=uint8
instances: 10
  [0] keys=['bbox', 'bbox_labels', 'mask']  mask=(640, 640)  bbox=[0.0, 0.0, 374.8, 353.9]  label={'class_name': 'umbrella'}
  [1] keys=['bbox', 'bbox_labels', 'mask']  mask=(640, 640)  bbox=[0.0, 0.0, 133.7, 353.9]  label={'class_name': 'person'}
  [2] keys=['bbox', 'bbox_labels', 'mask']  mask=(640, 640)  bbox=[397.9, 0.0, 521.9, 52.3]  label={'class_name': 'elephant'}
  [3] keys=['bbox', 'bbox_labels', 'mask']  mask=(640, 640)  bbox=[522.5, 0.0, 632.0, 87.4]  label={'class_name': 'elephant'}
  [4] keys=['bbox', 'bbox_labels', 'mask']  mask=(640, 640)  bbox=[0.0, 353.8, 383.1, 640.0]  label={'class_name': 'motorcycle'}
  [5] keys=['bbox', 'bbox_labels', 'mask']  mask=(640, 640)  bbox=[44.0, 328.4, 396.5, 640.0]  label={'class_name': 'motorcycle'}
  [6] keys=['bbox', 'bbox_labels', 'mask']  mask=(640, 640)  bbox=[29.0, 361.0, 332.0, 579.0]  label={'class_name': 'bowl'}
  [7] keys=['bbox', 'bbox_labels', 'mask']  mask=(640, 640)  bbox=[310.0, 150.0, 323.0, 176.0]  label={'class_name': 'person'}
  [8] keys=['bbox', 'bbox_labels', 'mask']  mask=(640, 640)  bbox=[36.0, 50.0, 454.0, 409.0]  label={'class_name': 'zebra'}
  [9] keys=['bbox', 'bbox_labels', 'mask']  mask=(640, 640)  bbox=[283.0, 75.0, 302.0, 84.0]  label={'class_name': 'car'}

class CocoSegDataset(torch.utils.data.Dataset):
    def __init__(self, image_paths, transform, pool):
        self.image_paths = image_paths
        self.transform = transform
        self.pool = pool
        self.rng = np.random.default_rng()

    def __getitem__(self, idx):
        image, instances = load_sample(self.image_paths[idx])
        # sample 3 Mosaic neighbors + a few donors from the same training pool
        mosaic_metadata, copy_paste_metadata = sample_metadata(self.pool, self.rng)
        out = self.transform(
            image=image,
            instances=instances,
            mosaic_metadata=mosaic_metadata,
            copy_paste_metadata=copy_paste_metadata,
        )
        return out["image"], out["instances"]
