Introduction to 3D Medical Image Augmentation 🔗

Overview 🔗

While primarily used for medical imaging (CT scans, MRI), Albumentations' 3D transforms can be applied to various volumetric data types

Medical Imaging 🔗

  • CT and MRI scans
  • Ultrasound volumes
  • PET scans
  • Multi-modal medical imaging

Scientific Data 🔗

  • Microscopy z-stacks
  • Cryo-EM volumes
  • Geological seismic data
  • Weather radar volumes

Industrial Applications 🔗

  • 3D NDT (Non-Destructive Testing) scans
  • Industrial CT for quality control
  • Material analysis volumes
  • 3D ultrasonic testing data

Computer Vision 🔗

  • Depth camera sequences
  • LiDAR point cloud voxelizations
  • Multi-view stereo reconstructions

Data Format 🔗

Volumes 🔗

Albumentations expects 3D volumes as numpy arrays in the following formats:

  • (D, H, W) - Single-channel volumes (e.g., CT scans)
  • (D, H, W, C) - Multi-channel volumes (e.g., multi-modal MRI)

Where:

  • D = Depth (number of slices)
  • H = Height
  • W = Width
  • C = Channels (optional)

3D Masks 🔗

Segmentation masks should match the volume dimensions:

  • (D, H, W) - Binary or single-class masks
  • (D, H, W, C) - Multi-class masks

When applying augmentations, pass these masks using the mask3d keyword argument.

Basic Usage 🔗

import albumentations as A
import numpy as np

Create a basic 3D augmentation pipeline 🔗

transform = A.Compose([
    # Crop volume to a fixed size for memory efficiency
    A.RandomCrop3D(size=(64, 128, 128), p=1.0),
    # Randomly remove cubic regions to simulate occlusions
    A.CoarseDropout3D(
        num_holes_range=(2, 6),
        hole_depth_range=(0.1, 0.3),
        hole_height_range=(0.1, 0.3),
        hole_width_range=(0.1, 0.3),
        p=0.5
    ),
])

Apply to volume and mask 🔗

volume = np.random.rand(96, 256, 256) # Your 3D medical volume
mask = np.zeros((96, 256, 256)) # Your 3D segmentation mask
transformed = transform(volume=volume, mask3d=mask)
transformed_volume = transformed['volume']
transformed_mask = transformed['mask3d']

Note: Geometric transforms like RandomCrop3D are automatically applied identically to both the volume and the mask3d when passed together, ensuring synchronization.

Available 3D Transforms 🔗

Here are some examples of available 3D transforms:

For a complete and up-to-date list of all available 3D transforms, please see our API Reference.

Combining 2D and 3D Transforms 🔗

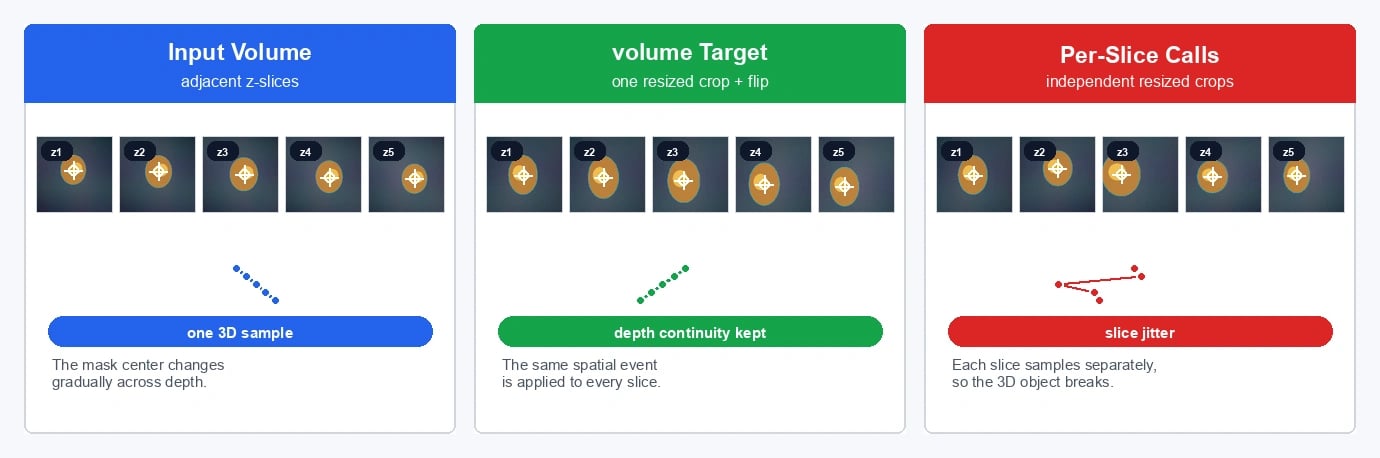

You can combine 2D and 3D transforms in the same pipeline. When 2D transforms are included, Albumentations samples their random parameters once per call and applies them identically to each XY slice along the depth axis. This ensures consistency across slices for transforms like flips or color adjustments.

transform = A.Compose([
    # 3D transforms
    A.RandomCrop3D(size=(64, 128, 128)),
    # 2D transforms (applied identically to each XY slice)
    A.HorizontalFlip(p=0.5),
    A.RandomBrightnessContrast(p=0.2),
])

transformed = transform(volume=volume, mask3d=mask)
transformed_volume = transformed['volume']
transformed_mask = transformed['mask3d']

Memory Management 🔗

3D volumes can be large. Consider using smaller crop sizes or processing in patches.

  • Place cropping operations at the beginning of your pipeline for better performance
  • Example: A 256x256x256 volume cropped to 64x64x64 will process subsequent transforms ~64x faster

Efficient pipeline - cropping first 🔗

efficient_transform = A.Compose([
A.RandomCrop3D(size=(64, 64, 64)), # Do this first!
A.CoarseDropout3D(...),
A.RandomBrightnessContrast(...)
])

Less efficient pipeline - processing full volume unnecessarily 🔗

inefficient_transform = A.Compose([
A.CoarseDropout3D(...), # Processing full volume
A.RandomBrightnessContrast(...), # Processing full volume
A.RandomCrop3D(size=(64, 64, 64)) # Cropping at the end
])

Example Pipeline 🔗

Here's a complete example of a medical image augmentation pipeline:

import albumentations as A
import numpy as np

def create_3d_pipeline(
    crop_size=(64, 128, 128),
    p_spatial=0.5,
    p_intensity=0.3
    ):
    return A.Compose([
        # Spatial transforms
        A.RandomCrop3D(
            size=crop_size,
            p=1.0
        ),
        A.CubicSymmetry(p=p_spatial),
        # Intensity transforms
        A.CoarseDropout3D(
            num_holes_range=(2, 5),
            hole_depth_range=(0.1, 0.2),
            hole_height_range=(0.1, 0.2),
            hole_width_range=(0.1, 0.2),
            p=p_intensity
        ),
    ])

Usage 🔗

transform = create_3d_pipeline()
volume = np.random.rand(96, 256, 256)
mask = np.zeros((96, 256, 256))
transformed = transform(volume=volume, mask3d=mask)

Where to Go Next? 🔗

After learning the basics of volumetric augmentation:
