Bounding Box Augmentation for Object Detection 🔗

This guide explains how to apply augmentations to images and their corresponding bounding boxes for object detection tasks using Albumentations. The key is ensuring transformations are applied consistently to both image pixels and box coordinates.

For background on why data augmentation is important and which specific augmentations might be suitable for object detection, please refer to:

Understanding Bounding Box Formats 🔗

Bounding boxes mark object locations. Albumentations needs to know the format of your bounding box coordinates. It supports four common formats:

  • pascal_voc: [x_min, y_min, x_max, y_max] in absolute pixel coordinates. (x_min, y_min) is the top-left corner, and (x_max, y_max) is the bottom-right corner.
  • albumentations: Similar to pascal_voc, but uses normalized coordinates: [normalized_x_min, normalized_y_min, normalized_x_max, normalized_y_max]. These are calculated as x_pixel / image_width and y_pixel / image_height.
  • coco: [x_min, y_min, bbox_width, bbox_height] in absolute pixel coordinates. (x_min, y_min) is the top-left corner.
  • yolo: [normalized_x_center, normalized_y_center, normalized_bbox_width, normalized_bbox_height]. These are normalized coordinates.

Example: For a 640x480 image (image_width=640, image_height=480) with a box from (98, 345) to (420, 462):

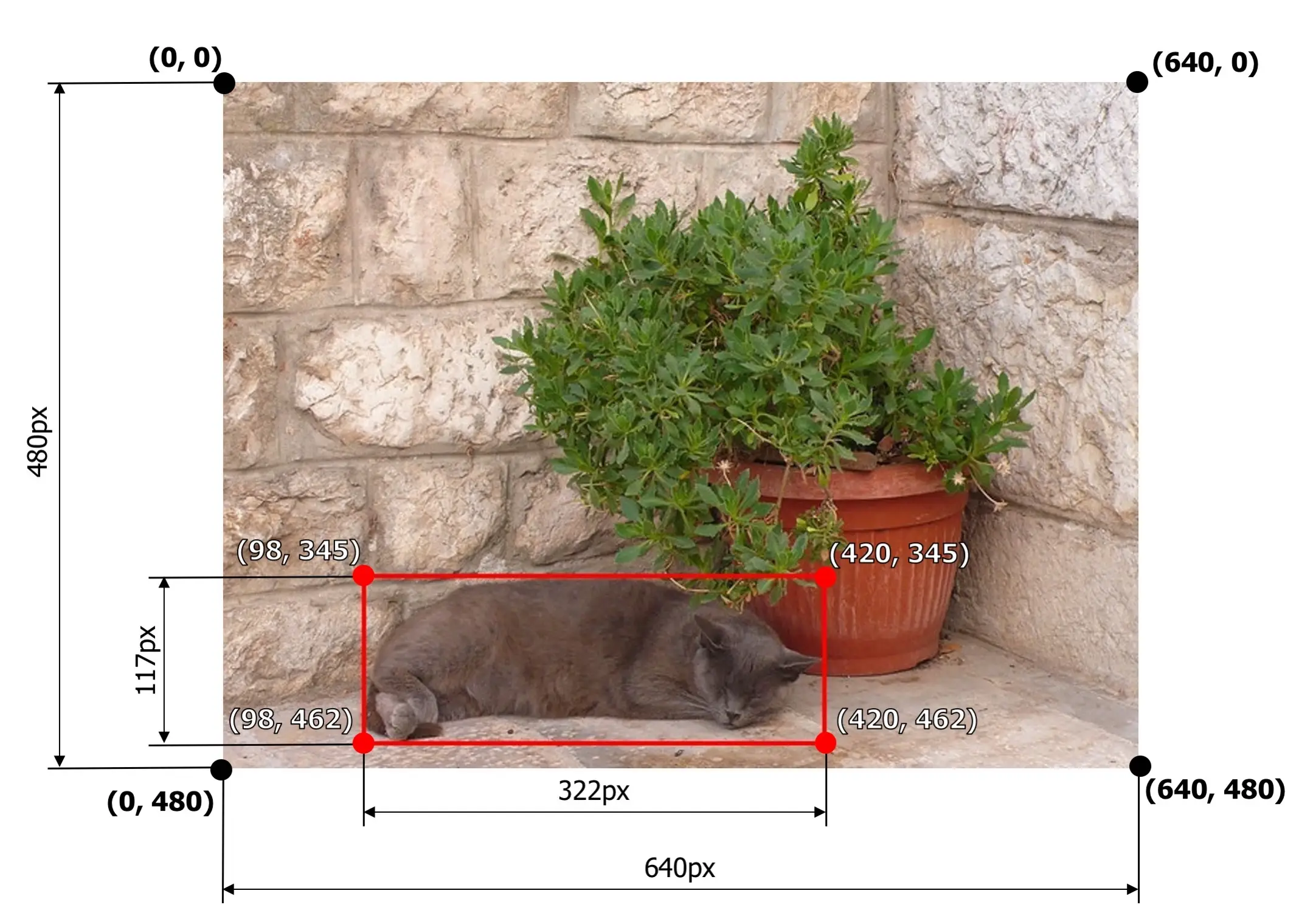

Bounding box example

The formats represent this box as:

  • pascal_voc: [x_min, y_min, x_max, y_max] -> Direct pixel coordinates: [98, 345, 420, 462]
  • albumentations: [x_min/image_width, y_min/image_height, x_max/image_width, y_max/image_height] -> Normalized pascal_voc: [98/640, 345/480, 420/640, 462/480] ≈ [0.153, 0.719, 0.656, 0.962]
  • coco: [x_min, y_min, bbox_width, bbox_height] -> Top-left corner + box dimensions: bbox_width=420-98=322, bbox_height=462-345=117. Result: [98, 345, 322, 117]
  • yolo: [x_center/image_width, y_center/image_height, bbox_width/image_width, bbox_height/image_height] -> Normalized center + normalized box dimensions: x_center=(98+420)/2=259, y_center=(345+462)/2=403.5. Result: [259/640, 403.5/480, 322/640, 117/480] ≈ [0.405, 0.861, 0.503, 0.244]

Comparison of bounding box formats

You must specify the format you are providing so Albumentations can process it correctly.

Augmenting Bounding Boxes: Step-by-Step 🔗

The process involves 4 main steps:

  1. Import libraries.
  2. Define an augmentation pipeline with bounding box parameters.
  3. Read image and bounding box data.
  4. Apply the pipeline to the image and boxes.

Step 1: Import Libraries 🔗

import albumentations as A
import cv2
import numpy as np

Step 2: Define Augmentation Pipeline 🔗

Create an A.Compose pipeline, passing A.BboxParams to the bbox_params argument.

# Example pipeline (matches original doc for consistency with images)
train_transform = A.Compose([
    A.RandomCrop(width=450, height=450, p=1.0), # Example random crop
    A.HorizontalFlip(p=0.5),
    A.RandomBrightnessContrast(p=0.2),
], bbox_params=A.BboxParams(format='coco', # Specify input format
                           label_fields=['class_labels'] # Specify label argument name(s)
                           ))

Cropping Strategies for Object Detection:

The example above uses A.RandomCrop. While simple, this transform might randomly crop a region that contains none of the original bounding boxes, which is often undesirable for training object detectors. Albumentations provides specialized cropping transforms that are safer for bounding boxes:

  • A.AtLeastOneBboxRandomCrop: This transform crops a random area but guarantees that at least one bounding box from the original image is present within the crop. It's useful when you want diverse crops but are willing to lose some boxes, perhaps focusing training on individual objects or when images contain many redundant boxes.

  • A.BBoxSafeRandomCrop: This transform also crops a random area but guarantees that all bounding boxes are preserved within the crop (potentially by cropping a smaller area if needed). This is suitable when losing any bounding box is problematic (e.g., detecting all instances is critical, or you have rare objects).

  • A.RandomSizedBBoxSafeCrop: This is a very common and powerful transform. It crops a random portion of the image (with varying size and aspect ratio, similar to RandomResizedCrop in classification) while ensuring all bounding boxes remain within the cropped area. It then resizes this potentially non-square crop to your target height and width. This provides scale and aspect ratio augmentation while preserving all objects.

Consider replacing A.RandomCrop with one of these safer alternatives depending on your specific requirements for handling bounding boxes during cropping.

Understanding A.BboxParams:

  • format (Required): Specifies the format of the input bounding boxes ('pascal_voc', 'albumentations', 'coco', or 'yolo').
  • label_fields (Recommended): List of keyword argument names that will hold the labels corresponding to the bounding boxes passed to the transform call (e.g., ['class_labels']). Using this is the preferred way to handle labels, ensuring they stay synchronized with boxes that are kept or dropped.
  • min_area: Minimum pixel area. Boxes smaller than this after augmentation are dropped. Default: 0.0.
  • min_visibility: Minimum fraction (0.0-1.0) of the original box area that must remain visible after augmentation. Boxes below this threshold are dropped. Default: 0.0.
  • min_width: Minimum width of a bounding box (in pixels for absolute formats, normalized units for normalized formats). Boxes with width less than this value are removed. Default: 0.0.
  • min_height: Minimum height of a bounding box (in pixels or normalized units). Boxes with height less than this value are removed. Default: 0.0.
  • clip: If True, bounding box coordinates are clipped to stay within image boundaries ([0, image_width] for x, [0, image_height] for y) before applying transformations. Default: False.
  • filter_invalid_bboxes: If True, filters out invalid boxes (e.g., x_max < x_min) before applying augmentations. If clip=True, filtering happens after clipping. Default: False.
  • max_accept_ratio: Maximum allowed aspect ratio (max(width/height, height/width)). Boxes exceeding this ratio are filtered out. None disables this check. Default: None.

Handling Imperfect Annotations: It's common for real-world datasets to have bounding boxes that partially or fully extend outside the image boundaries due to labeling errors or previous processing. Setting clip=True will force these coordinates back within the image dimensions before augmentations are applied. Subsequently, setting filter_invalid_bboxes=True can help remove boxes that might have become invalid (e.g., zero width/height) after clipping. Using both clip=True and filter_invalid_bboxes=True together is a common strategy to clean up such annotations before augmentation.

min_area / min_visibility Example:

Consider cropping an image with two boxes:

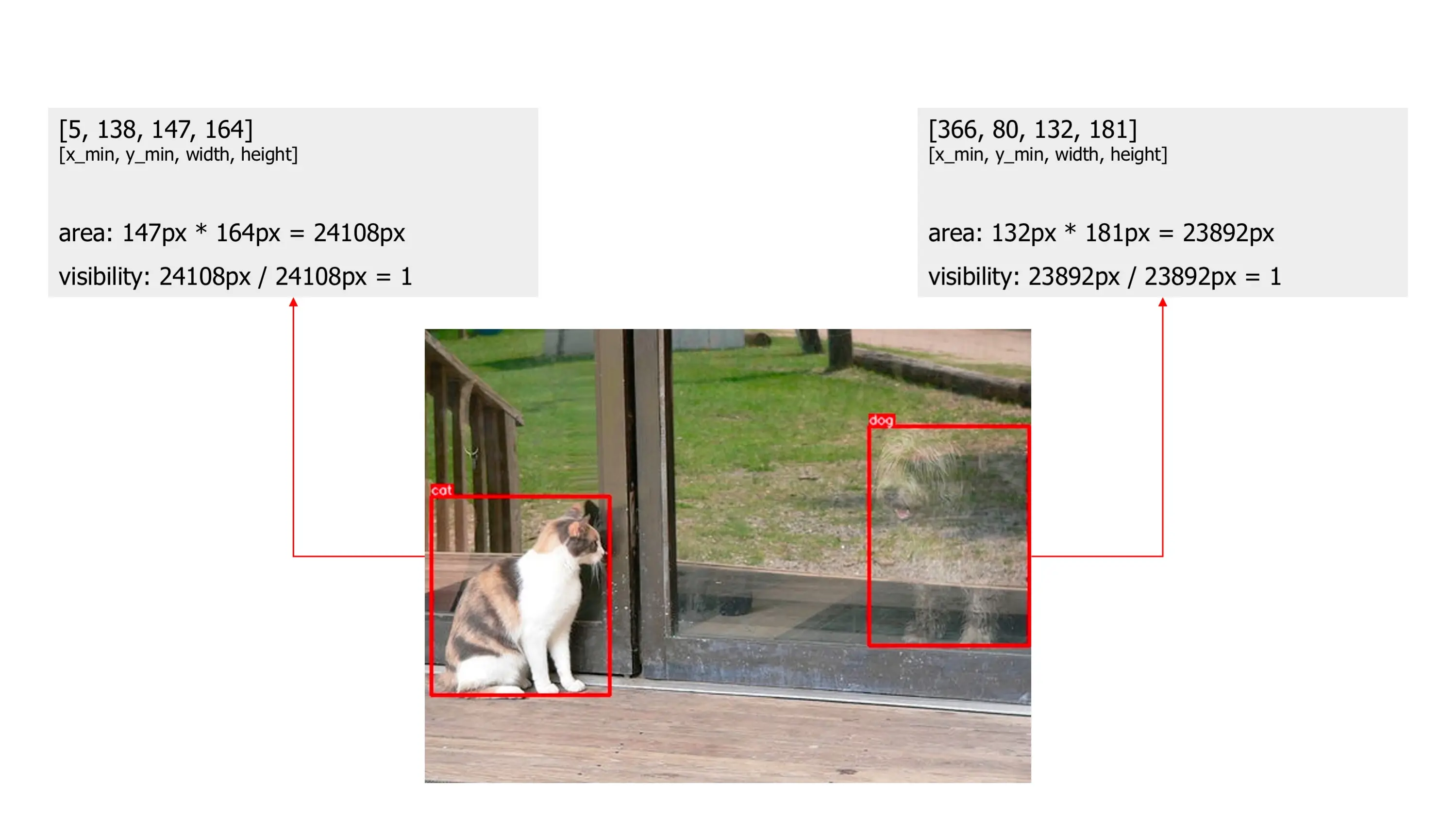

Original image with two boxes

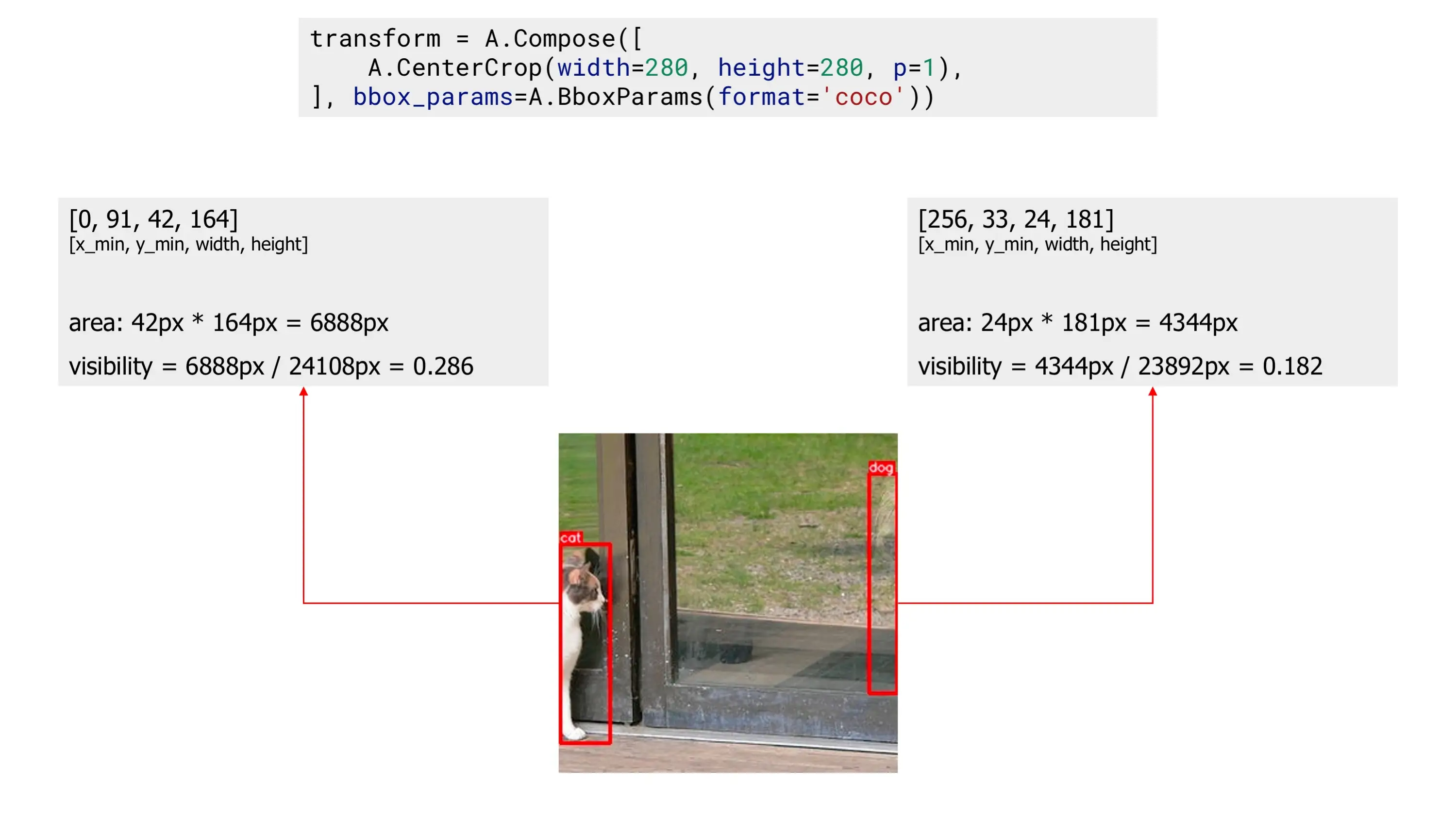

Applying A.CenterCrop might result in smaller or partially visible boxes:

After CenterCrop (no min_area/visibility)

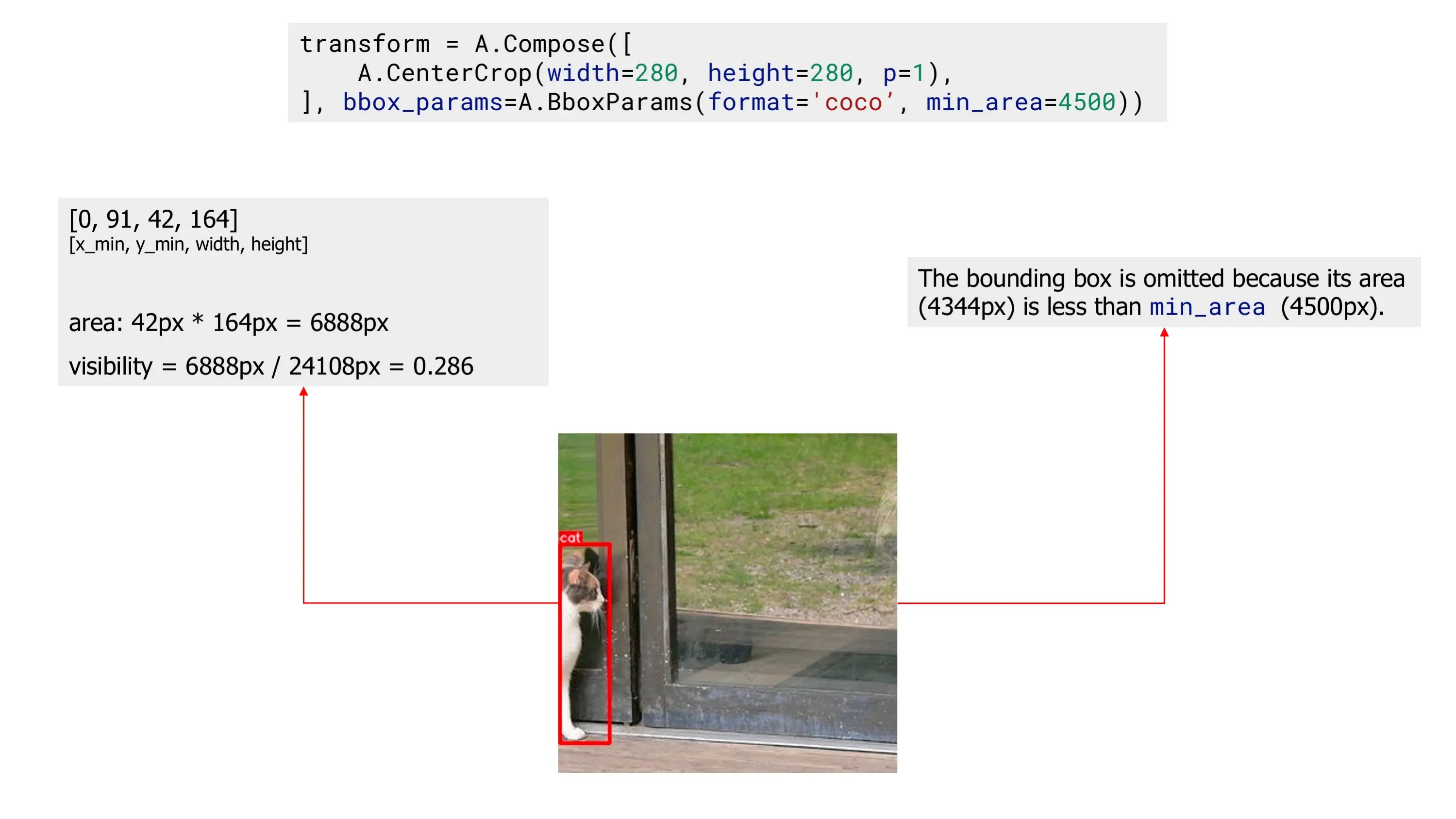

Using min_area can remove boxes that become too small:

After CenterCrop with min_area

Using min_visibility can remove boxes that are mostly cropped out:

After CenterCrop with min_visibility

Handling Class Labels:

Each bounding box needs a corresponding class label. Because bounding boxes are processed as NumPy arrays (which require homogeneous data types), labels must be passed separately from the coordinates.

Image with multiple bounding boxes

This is done using the label_fields parameter in A.BboxParams. You define one or more names in label_fields (e.g., ['class_labels', 'difficult_flag']). Then, when calling the transform, you pass lists corresponding to these names (e.g., transform(..., class_labels=my_labels, difficult_flag=my_flags)). Albumentations ensures these label lists are kept synchronized with the bounding boxes if any boxes are dropped during augmentation.

Step 3: Read Image and Bounding Boxes 🔗

Load your image (e.g., into an RGB NumPy array) and prepare your bounding box data.

# Load Image
image_path = "/path/to/your/image.jpg"
image = cv2.imread(image_path)
image = cv2.cvtColor(image, cv2.COLOR_BGR2RGB)

# Prepare Bounding Boxes (example using 'coco' format)
# Each inner list is [x_min, y_min, bbox_width, bbox_height]
bboxes = np.array([
    [23, 74, 295, 388],
    [377, 294, 252, 161],
    [333, 421, 49, 49],
])

# Prepare Labels (using the name specified in label_fields)
class_labels = ['dog', 'cat', 'sports ball']
# Example with multiple label fields if defined in BboxParams:
# class_categories = ['animal', 'animal', 'item']

Albumentations expects bboxes as a NumPy array (num_boxes, 4). Each inner list/row must contain the 4 coordinate values according to the specified format.

Step 4: Apply the Pipeline 🔗

Pass the image, bounding boxes (as bboxes), and the corresponding label lists using the keyword arguments defined in label_fields.

# Using train_transform defined earlier which has label_fields=['class_labels']
augmented = train_transform(image=image, bboxes=bboxes, class_labels=class_labels)

transformed_image = augmented['image']
transformed_bboxes = augmented['bboxes']
# Access transformed labels using the key from label_fields
transformed_class_labels = augmented['class_labels']

# If multiple label fields were defined (e.g., label_fields=['class_labels', 'category_id'])
# and passed like: transform(..., class_labels=..., category_id=...)
# then access them: transformed_category_ids = augmented['category_id']

Input/Output with separate labels

The output dictionary contains the augmented image and the corresponding augmented bounding boxes and labels, potentially filtered by min_area or min_visibility.

Visualization 🔗

Visualizing the augmented image with its boxes is crucial for debugging. Always check the output of your training pipeline on sample images before starting a full training run.

Important: Visualize the output before applying A.Normalize and A.ToTensorV2, as these change the data type and value range, making direct display difficult.

import matplotlib.pyplot as plt
import random
import numpy as np # Ensure numpy is imported
import cv2 # Ensure cv2 is imported

# Helper function to draw bounding boxes (adjust format handling as needed)
def draw_bboxes(image_np, bboxes, labels, class_name_map=None, color=(0, 255, 0), thickness=2):
    img_res = image_np.copy()
    font = cv2.FONT_HERSHEY_SIMPLEX
    font_scale = 0.5
    font_thickness = 1

    if not isinstance(bboxes, (list, np.ndarray)):
        print(f"Warning: bboxes is not a list or ndarray: {type(bboxes)}")
        return img_res
    if not isinstance(labels, (list, np.ndarray)):
        print(f"Warning: labels is not a list or ndarray: {type(labels)}")
        # Attempt to proceed if labels seem usable, otherwise return
        if len(bboxes) != len(labels):
            print("Warning: bbox and label length mismatch, cannot draw labels.")
            labels = ['?' for _ in bboxes] # Placeholder
        elif not all(isinstance(l, (str, int, float)) for l in labels):
             print("Warning: labels contain non-primitive types, cannot draw reliably.")
             labels = ['?' for _ in bboxes]

    for bbox, label in zip(bboxes, labels):
        # Assuming bbox format allows direct conversion to int x_min, y_min, x_max, y_max
        # This might need adjustment based on the ACTUAL format in your bboxes list
        # Example for pascal_voc or albumentations (after denormalizing)
        try:
             # Check if bbox has at least 4 elements
            if len(bbox) < 4:
                print(f"Warning: Skipping invalid bbox (fewer than 4 coords): {bbox}")
                continue
            x_min, y_min, x_max, y_max = map(int, bbox[:4])
        except (ValueError, TypeError) as e:
            print(f"Warning: Could not convert bbox coords to int: {bbox}, Error: {e}")
            continue # Skip this bbox

        cv2.rectangle(img_res, (x_min, y_min), (x_max, y_max), color, thickness)

        label_name = str(label) if class_name_map is None else class_name_map.get(label, str(label))
        # Simple text placement above the box
        (text_width, text_height), baseline = cv2.getTextSize(label_name, font, font_scale, font_thickness)
        text_y = y_min - baseline if y_min - baseline > text_height else y_min + text_height
        cv2.putText(img_res, label_name, (x_min, text_y), font, font_scale, color, font_thickness)

    return img_res

def visualize_bbox_augmentations(image, bboxes, labels, transform, samples=5):
    """Visualizes original image and augmented versions."""
    # Prepare visualization pipeline (strip Normalize, ToTensor)
    vis_transform = None
    if isinstance(transform, A.Compose):
        vis_transform_list = [
            t for t in transform
            if not isinstance(t, (A.Normalize, A.ToTensorV2))
        ]
        # Recreate Compose with original bbox_params if they exist
        bbox_params = getattr(transform, 'bbox_params', None)
        vis_transform = A.Compose(vis_transform_list, bbox_params=bbox_params)
    else:
        print("Cannot strip Normalize/ToTensor: transform is not an A.Compose instance.")
        vis_transform = transform # Use original transform

    if vis_transform is None or not hasattr(vis_transform, 'bbox_params'):
         print("Cannot visualize: Pipeline needs A.BboxParams for visualization.")
         return

    figure, ax = plt.subplots(1, samples + 1, figsize=(15, 5))

    # Draw original
    original_drawn = draw_bboxes(image, bboxes, labels)
    ax[0].imshow(original_drawn)
    ax[0].set_title("Original")
    ax[0].axis("off")

    # Draw augmented samples
    for i in range(samples):
        try:
            # Apply the visualization transform
            # Ensure labels are passed correctly based on label_fields
            label_args = {field: labels for field in vis_transform.bbox_params.label_fields}
            augmented = vis_transform(image=image, bboxes=bboxes, **label_args)

            aug_image = augmented['image']
            aug_bboxes = augmented['bboxes']
            # Extract labels correctly based on label_fields
            if vis_transform.bbox_params.label_fields:
                aug_labels = augmented[vis_transform.bbox_params.label_fields[0]]
            else:
                aug_labels = ['?' for _ in aug_bboxes] # Placeholder if no labels

            augmented_drawn = draw_bboxes(aug_image, aug_bboxes, aug_labels)
            ax[i+1].imshow(augmented_drawn)
            ax[i+1].set_title(f"Augmented {i+1}")
        except Exception as e:
            print(f"Error during augmentation sample {i+1}: {e}")
            ax[i+1].imshow(image) # Show original on error
            ax[i+1].set_title(f"Aug Error {i+1}")
        finally:
            ax[i+1].axis("off")

    plt.tight_layout()
    plt.show()

# --- Example Usage --- #
# Assuming 'image', 'bboxes', 'class_labels', and 'train_transform' are defined as in Step 3/4

# Load a sample image and annotations
# image = cv2.imread('your_image.jpg')
# image = cv2.cvtColor(image, cv2.COLOR_BGR2RGB)
# bboxes = [[...], [...]] # In 'coco' format for this example
# class_labels = ['label1', 'label2']

# Define the transform (must include bbox_params with correct format and label_fields)
# train_transform = A.Compose([
#     A.RandomCrop(width=450, height=450, p=1.0),
#     A.HorizontalFlip(p=0.5),
#     A.RandomBrightnessContrast(p=0.2),
#     # A.Normalize(...), # Include if used, will be stripped by visualize func
#     # A.ToTensorV2(),  # Include if used, will be stripped by visualize func
# ], bbox_params=A.BboxParams(format='coco', label_fields=['class_labels']))

# Visualize
# visualize_bbox_augmentations(image, bboxes, class_labels, train_transform, samples=4)
