Weather augmentations in Albumentations

This notebook demonstrates weather augmentations that are supported by Albumentations.

Import the required libraries

import albumentations as A
import cv2
from matplotlib import pyplot as plt

/opt/homebrew/Caskroom/miniconda/base/envs/albumentations_examples/lib/python3.9/site-packages/tqdm/auto.py:21: TqdmWarning: IProgress not found. Please update jupyter and ipywidgets. See https://ipywidgets.readthedocs.io/en/stable/user_install.html
  from .autonotebook import tqdm as notebook_tqdm

Define a function to visualize an image

def visualize(image):
    plt.figure(figsize=(20, 10))
    plt.axis("off")
    plt.imshow(image)

Load the image from the disk

image = cv2.imread("images/weather_example.jpg", cv2.IMREAD_COLOR_RGB)

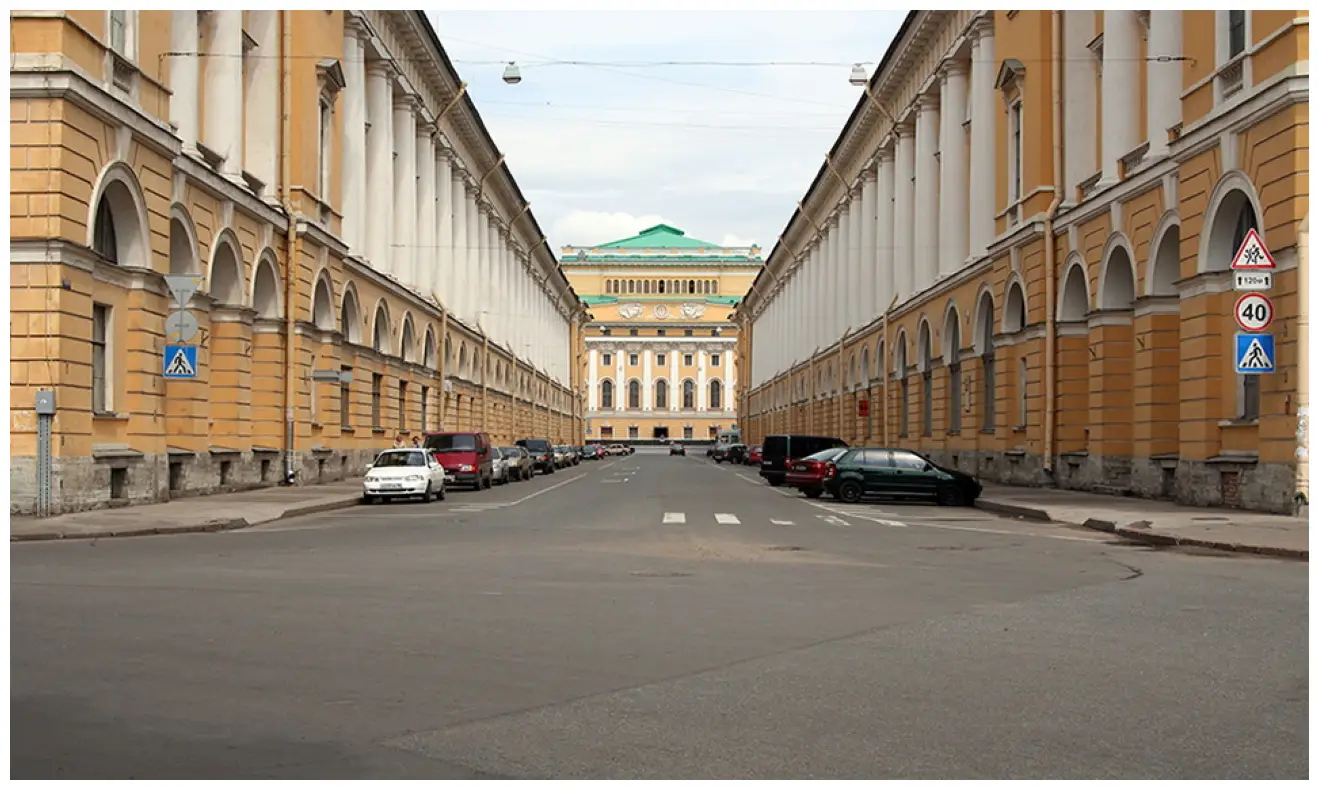

Visualize the original image

visualize(image)

No code provided

png

No code provided

RandomRain

We fix the random seed for visualization purposes, so the augmentation will always produce the same result. In a real computer vision pipeline, you shouldn't fix the random seed before applying a transform to the image because, in that case, the pipeline will always output the same image. The purpose of image augmentation is to use different transformations each time.

transform = A.Compose(
    [A.RandomRain(brightness_coefficient=0.8, drop_width=1, blur_value=5, p=1, rain_type="heavy")],
    strict=True,
    seed=137,
)
transformed = transform(image=image)
visualize(transformed["image"])

No code provided

png

No code provided

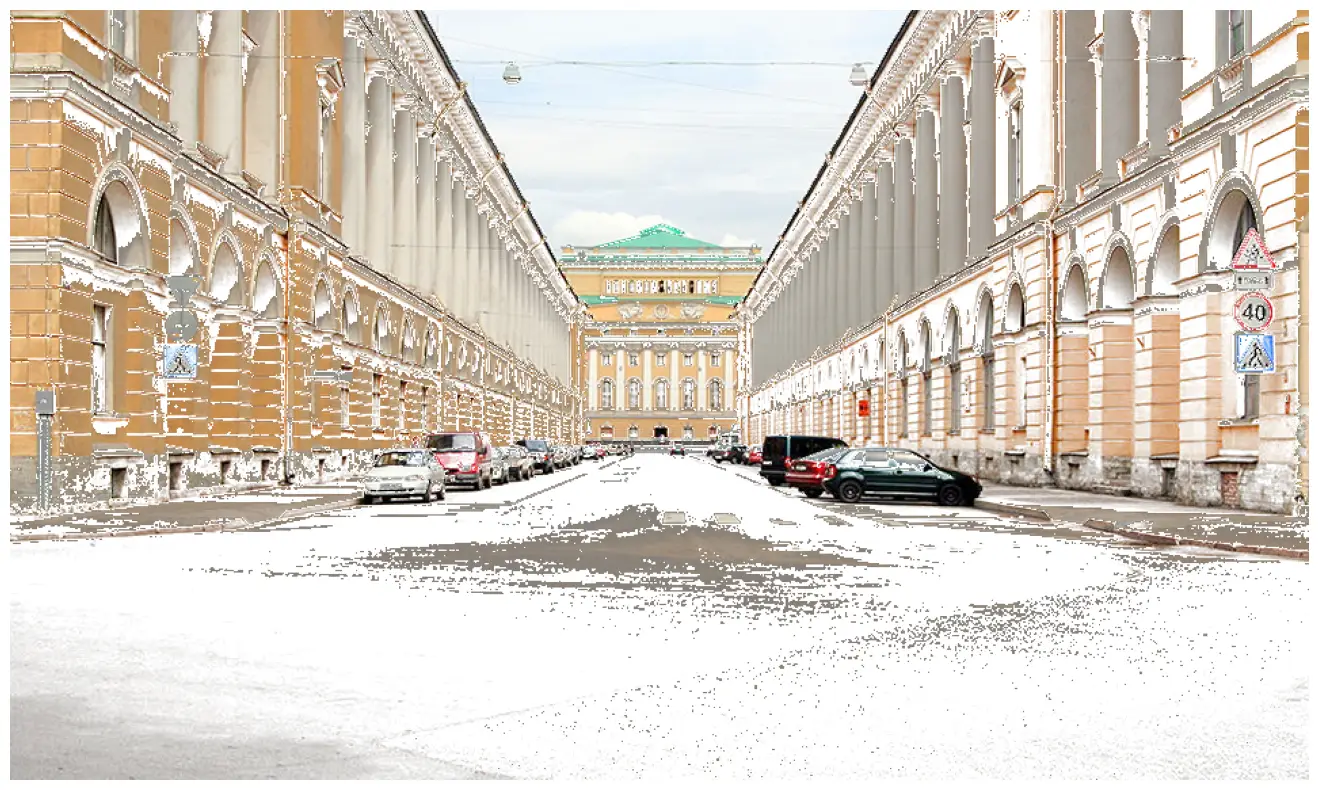

RandomSnow

transform = A.Compose(
    [A.RandomSnow(brightness_coeff=2.5, snow_point_range=(0.3, 0.5), p=1)],
    strict=True,
    seed=137,
)
transformed = transform(image=image)
visualize(transformed["image"])

No code provided

png

No code provided

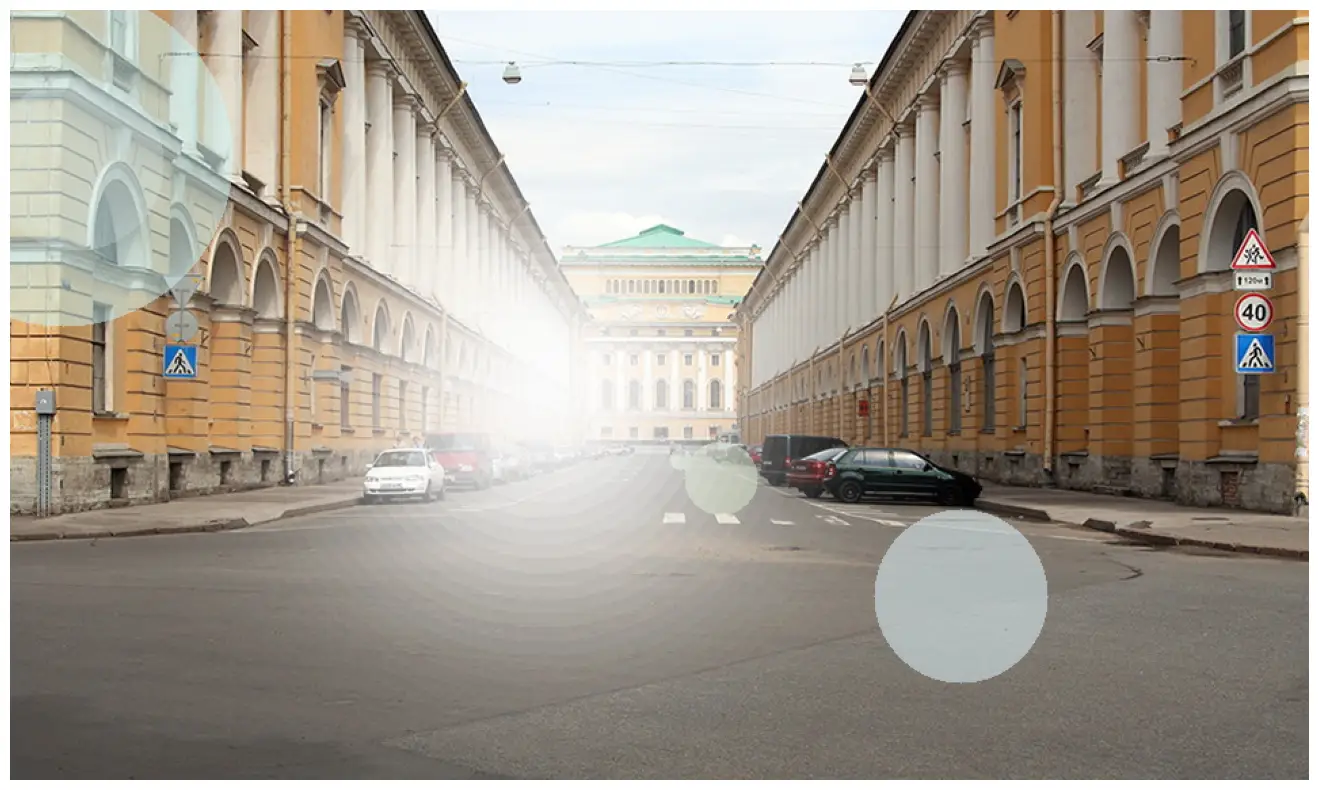

RandomSunFlare

transform = A.Compose(
    [A.RandomSunFlare(flare_roi=(0, 0, 1, 0.5), p=1)],
    strict=True,
    seed=137,
)
transformed = transform(image=image)
visualize(transformed["image"])

No code provided

png

No code provided

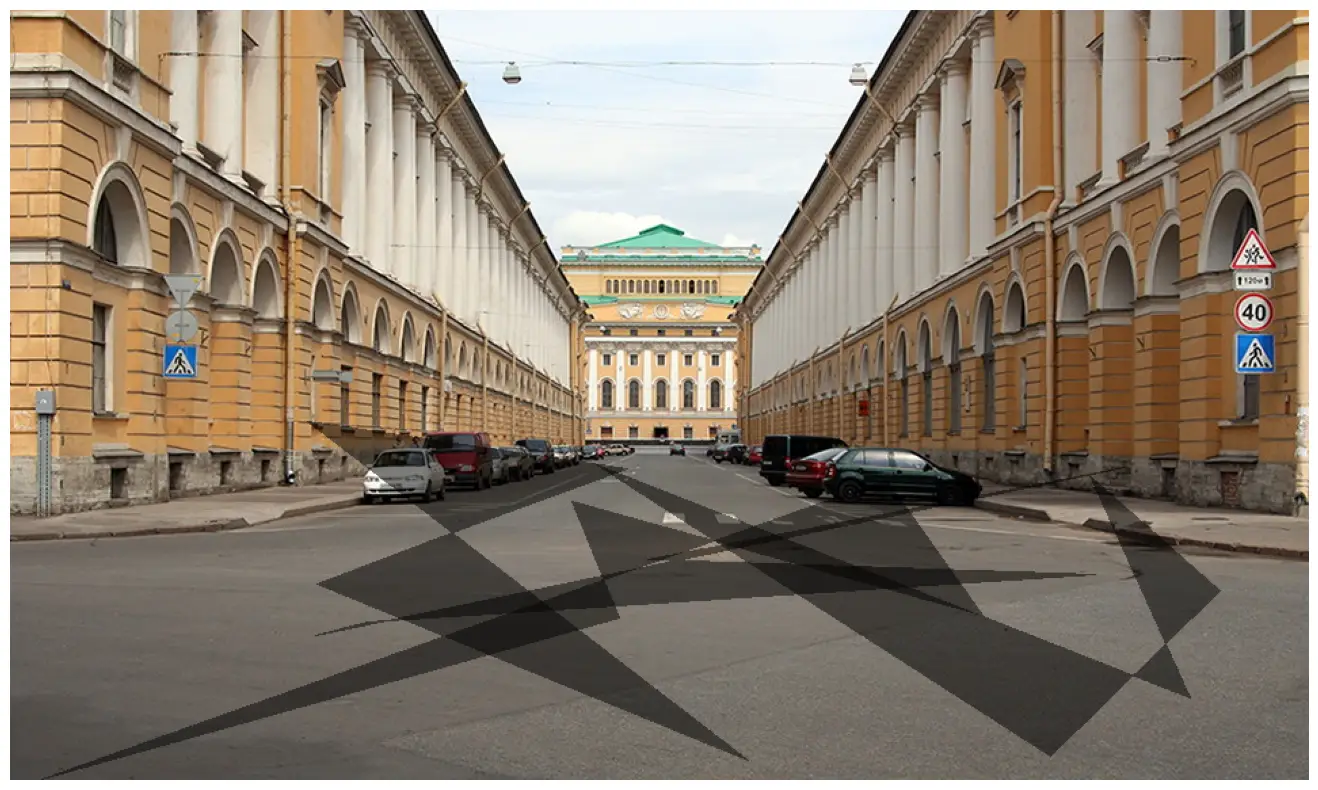

RandomShadow

transform = A.Compose(
    [A.RandomShadow(num_shadows_limit=(4, 4), shadow_dimension=5, shadow_roi=(0, 0.5, 1, 1), p=1)],
    strict=True,
    seed=137,
)

transformed = transform(image=image)
visualize(transformed["image"])

No code provided

png

No code provided

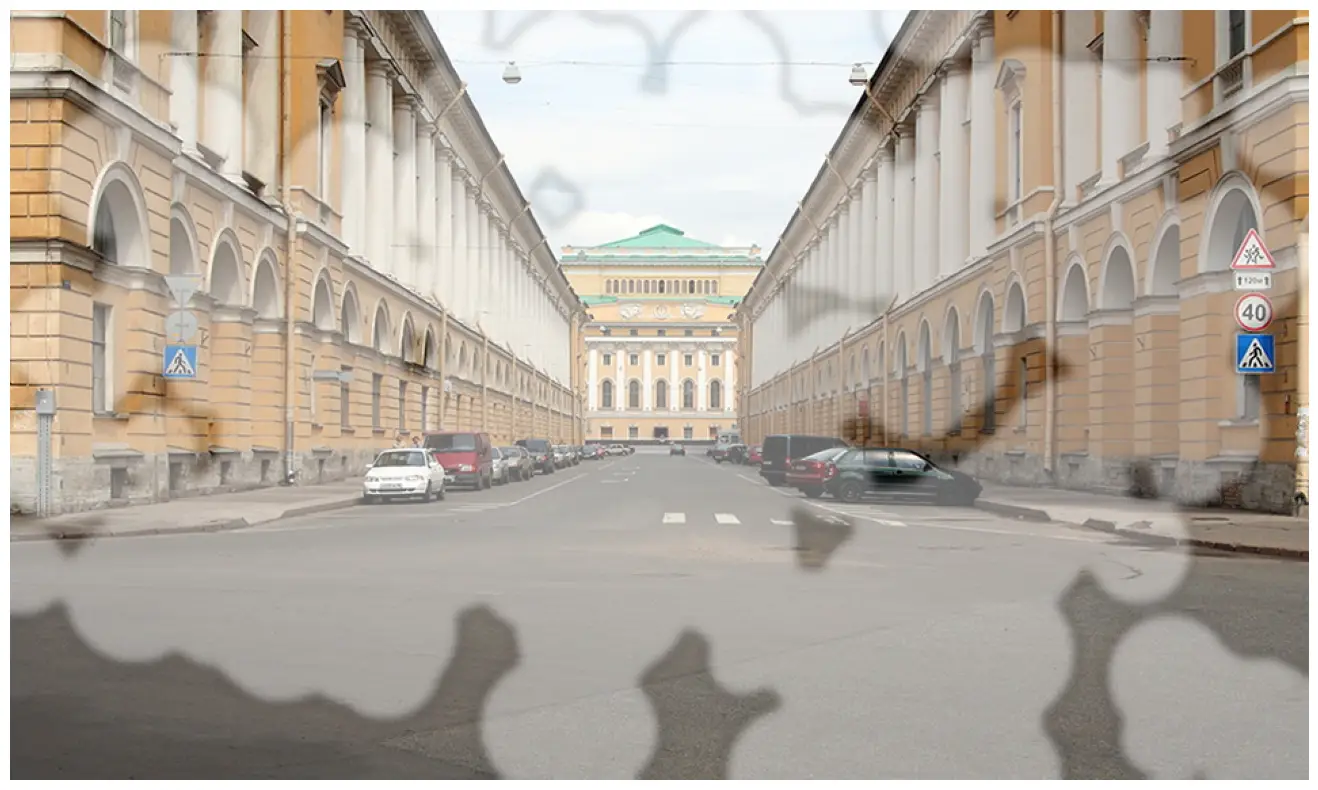

RandomFog

transform = A.Compose(
    [A.RandomFog(fog_coef_range=(1, 1), alpha_coef=0.4, p=1)],
    strict=True,
    seed=137,
)
transformed = transform(image=image)
visualize(transformed["image"])

No code provided

png

No code provided
