What is Data Augmentation (and Why Your Computer Vision Model Needs It) 🔗

Training modern machine learning models, especially for computer vision, often requires vast amounts of data. These models learn intricate patterns from the examples they see. Generally, the more diverse and numerous these examples are, the better the models perform on new, unseen data.

However, collecting and labeling huge datasets can be a major bottleneck. It's often expensive, time-consuming, and sometimes (like for rare events) gathering enough data is simply impossible.

This is where Data Augmentation comes in. It's a set of techniques to artificially increase the amount and diversity of your training data by generating modified copies of existing data points. Think of it like teaching a model more robustly by showing it the same things, just in slightly different ways.

Why Augment Data? The Motivation 🔗

Modern deep learning models thrive on data. We observe empirically that models trained on larger, more diverse datasets tend to generalize better. This means they perform more accurately and reliably on new data they haven't encountered during training.

Ideally, the first step to improve a model is often acquiring more high-quality labeled data. This new data should increase both the size and diversity of your dataset. Pay special attention to getting data for scenarios where the model currently struggles, like rare classes or tricky examples. Also, data acquisition must respect legal and ethical rules. Scraping data from the internet is common but operates in a legal gray area depending on the source and use. If you can get more varied, high-quality, legally sound data that targets your model's weak spots, that's usually the best path to improvement.

However, acquiring such ideal data is often impractical for several reasons:

  1. Cost and Time: Data collection and labeling, particularly at scale, can be prohibitively expensive and time-consuming.
  2. Inherent Data Scarcity: Some phenomena are naturally rare. For example, certain rare diseases will, by definition, have limited available medical images, making it impossible to gather a large dataset regardless of resources.
  3. Expert Labeling Requirement: Many tasks require domain expertise for accurate labeling. For instance, radiological scans must be annotated by trained radiologists, which adds significant cost and potential delays.

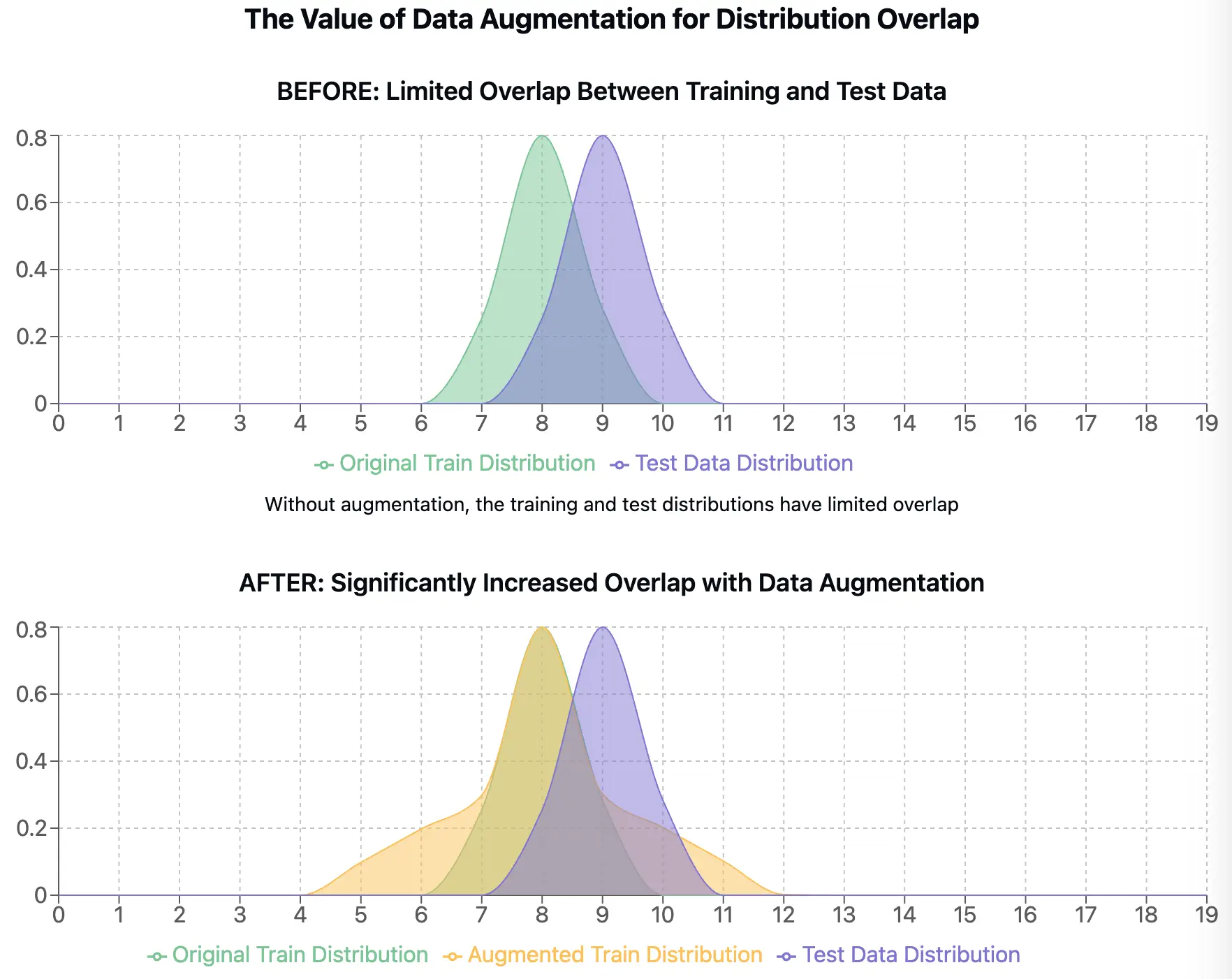

Beyond these limitations, distribution shift is another common challenge. A model might be trained on data from one source (like images from one country or scans from a specific hospital's machine) but needs to perform well in a different context (a new geography or a hospital with different equipment). Evaluating performance across datasets from varying distributions is standard practice in research to gauge real-world robustness.

This is where Data Augmentation becomes an invaluable technique. It allows us to artificially expand the diversity of our existing training data by applying transformations that create plausible variations of our samples. For the distribution shift problem, augmentations can help by effectively widening the distribution of the training data, increasing the chance that it overlaps with the distribution the model will encounter during deployment.

Crucially, unlike the slow and costly process of data collection and labeling, data augmentation is typically applied on-the-fly during model training. The transformations are often computed on the CPU in parallel while the GPU is busy with the forward and backward passes of the neural network. This means augmentations can help enhance data diversity and model robustness with minimal impact on overall training time and without the direct costs associated with acquiring new data. It's a powerful tool for making the most of the data you already have.

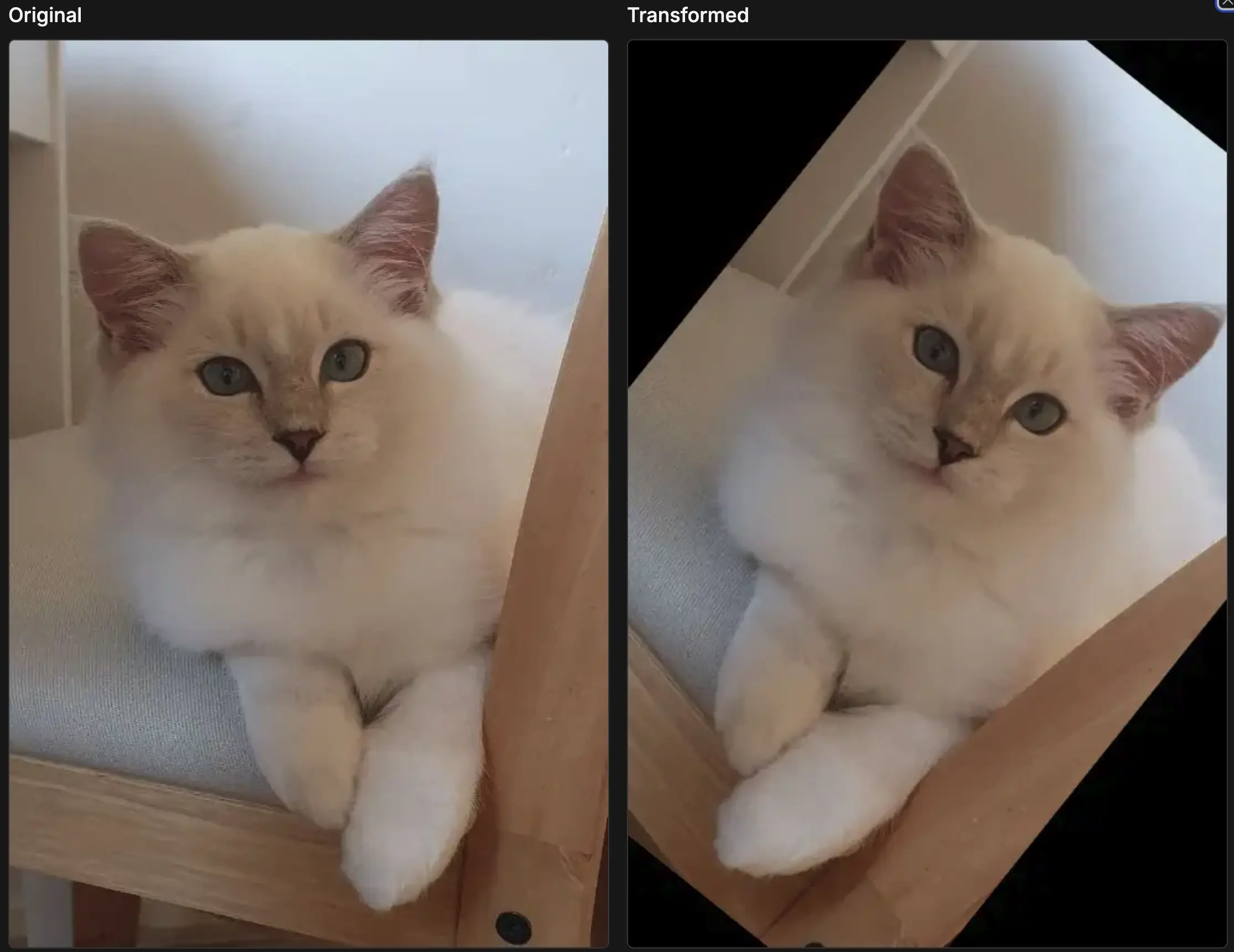

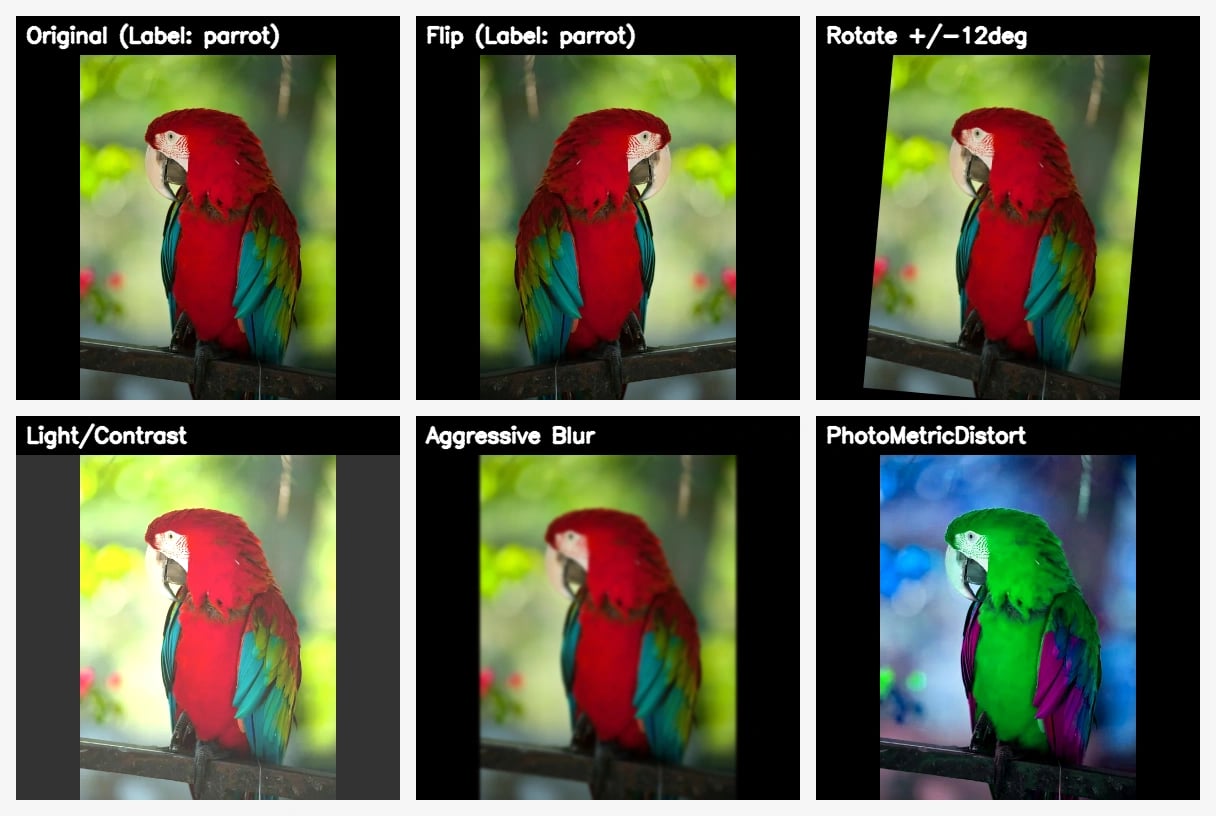

At its core, data augmentation involves applying various transformations to your existing training samples to create modified copies. Crucially, these transformations must be label-preserving. This means the core meaning or category represented by the data shouldn't change. If you apply an augmentation to an image labeled "cat," the resulting image should still be clearly recognizable as a "cat."

Pros and Cons

While the core idea is simple, the practical application of data augmentation involves trade-offs and strategic thinking. A smartly chosen augmentation pipeline almost always leads to better performing, more robust models. However, achieving the "optimal" pipeline is complex because it heavily depends on the specific context: the nature of the task, the chosen model architecture, the characteristics of the dataset, and even the training hyperparameters (like learning rate and optimizer).

Generally, data augmentation tends to provide more relative value when working with smaller datasets, where the risk of overfitting on limited examples is higher. For large datasets, the inherent diversity might already be sufficient, although augmentation often still provides benefits in robustness.

There are currently no standard methods to automatically determine the best augmentation strategy for every problem. Selecting an effective pipeline often relies on the practitioner's experience and intuition, usually involving iterative experimentation. While researchers are exploring automated approaches (like AutoAugment and RandAugment), these methods aren't yet mature enough to reliably replace careful manual selection in most practical scenarios, and they can be computationally expensive.

Also, predicting the exact performance gain from a specific augmentation strategy beforehand is difficult. This uncertainty makes it challenging to allocate time and resources for extensive tuning. Collecting new data adds a direct data asset (intellectual property) to a company, whereas an augmentation pipeline is primarily code and configuration, which isn't valued in the same way.

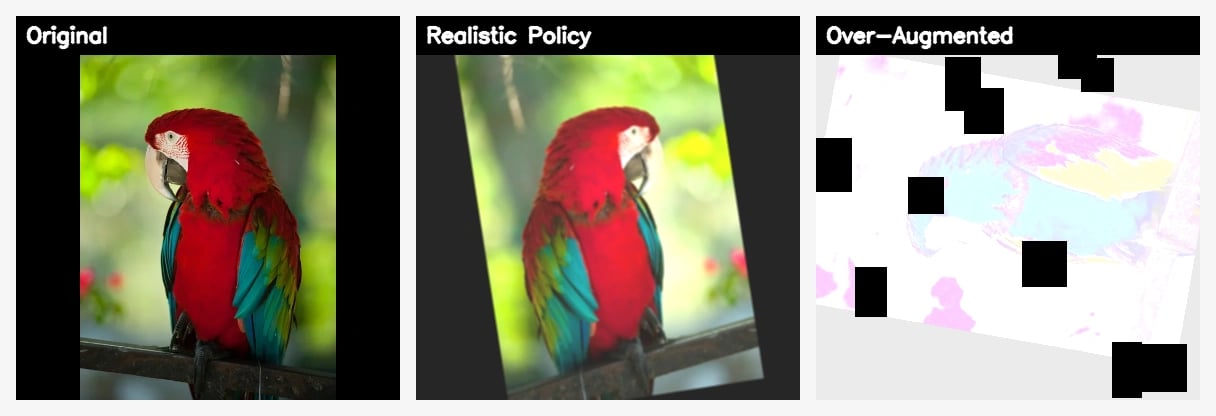

Remember that augmentation also acts as a form of regularization. Like any regularization, overuse can be harmful. Overly aggressive augmentations might slow down training convergence or, more critically, create an augmented training distribution that differs too much from the real-world test data, potentially hurting performance in production.

It's also worth noting how data augmentation differs from other common regularization methods like Dropout, weight decay (L1/L2 regularization), or early stopping. While those techniques generally apply uniformly across the model or the entire training process, data augmentation offers the potential for more surgical application. Although not its most common use, one could theoretically design pipelines that apply specific augmentations more heavily to underperforming classes or even individual challenging samples, offering a targeted way to improve robustness where it's most needed.

Despite these challenges, data augmentation is a cornerstone of modern computer vision. It's widely used across almost all image-related tasks, and the collective expertise in applying it effectively grows daily. While finding the absolute best pipeline is hard, finding a good one that improves your model is often achievable. We provide practical recommendations in our guide on How to Pick Augmentations. Remember these are guidelines, and verifying their effectiveness on your specific dataset through experimentation is always recommended.

Focusing on Image Augmentation 🔗

Data augmentation applies to various domains (text, audio, etc.), but it's especially crucial and widely used in computer vision. Images have high dimensionality and show immense real-world variability due to factors like:

  • Viewpoint: Objects look different from various angles.
  • Illumination: Lighting conditions change dramatically (day/night, indoor/outdoor, shadows).
  • Scale: Objects can appear at different sizes depending on distance.
  • Deformation: Non-rigid objects can bend and change shape.
  • Occlusion: Objects can be partially hidden by others.
  • Background: Objects appear against diverse backgrounds.
  • Intra-class Variation: Even within a single category (like "dog"), there's huge visual diversity.

Image augmentation techniques aim to simulate these variations.

Common Image Augmentation Techniques

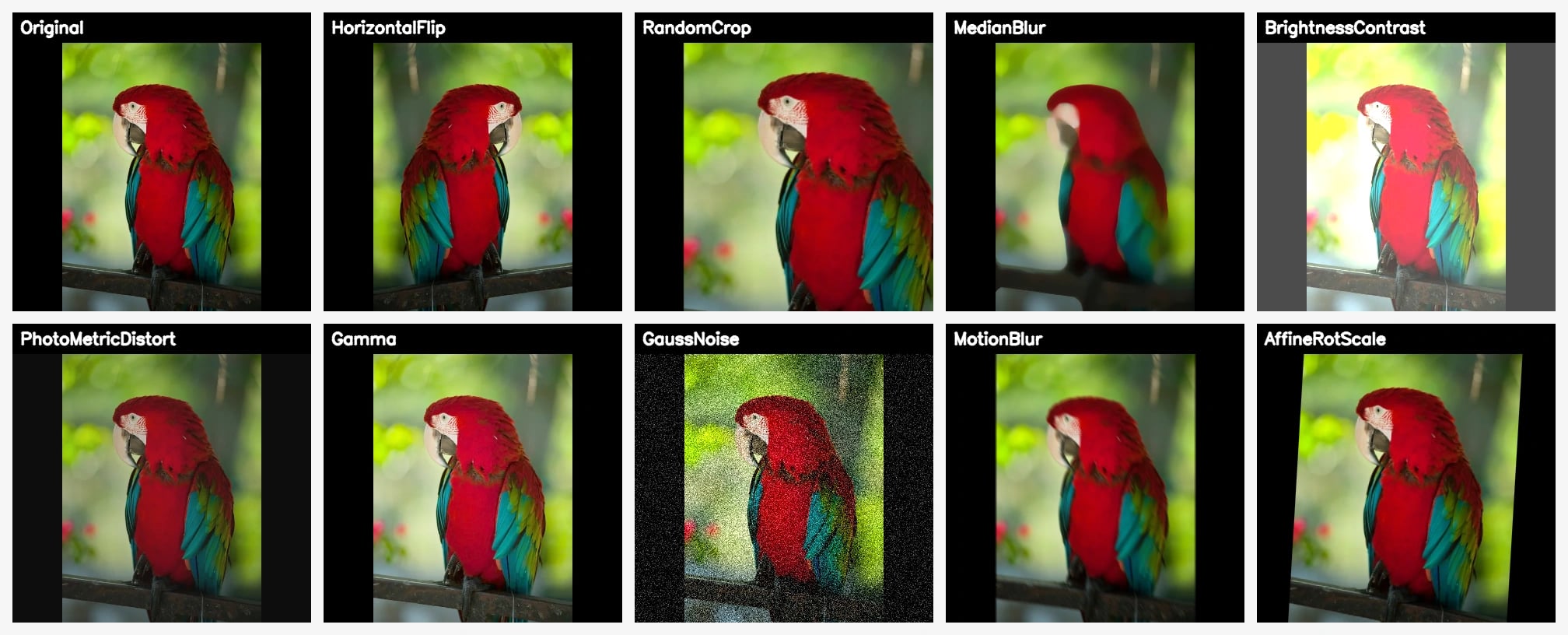

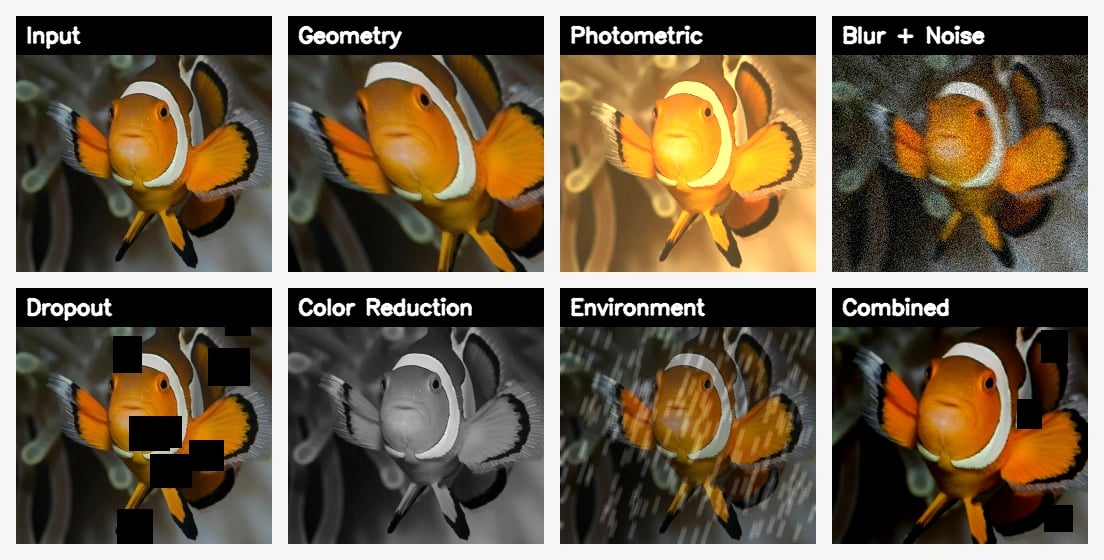

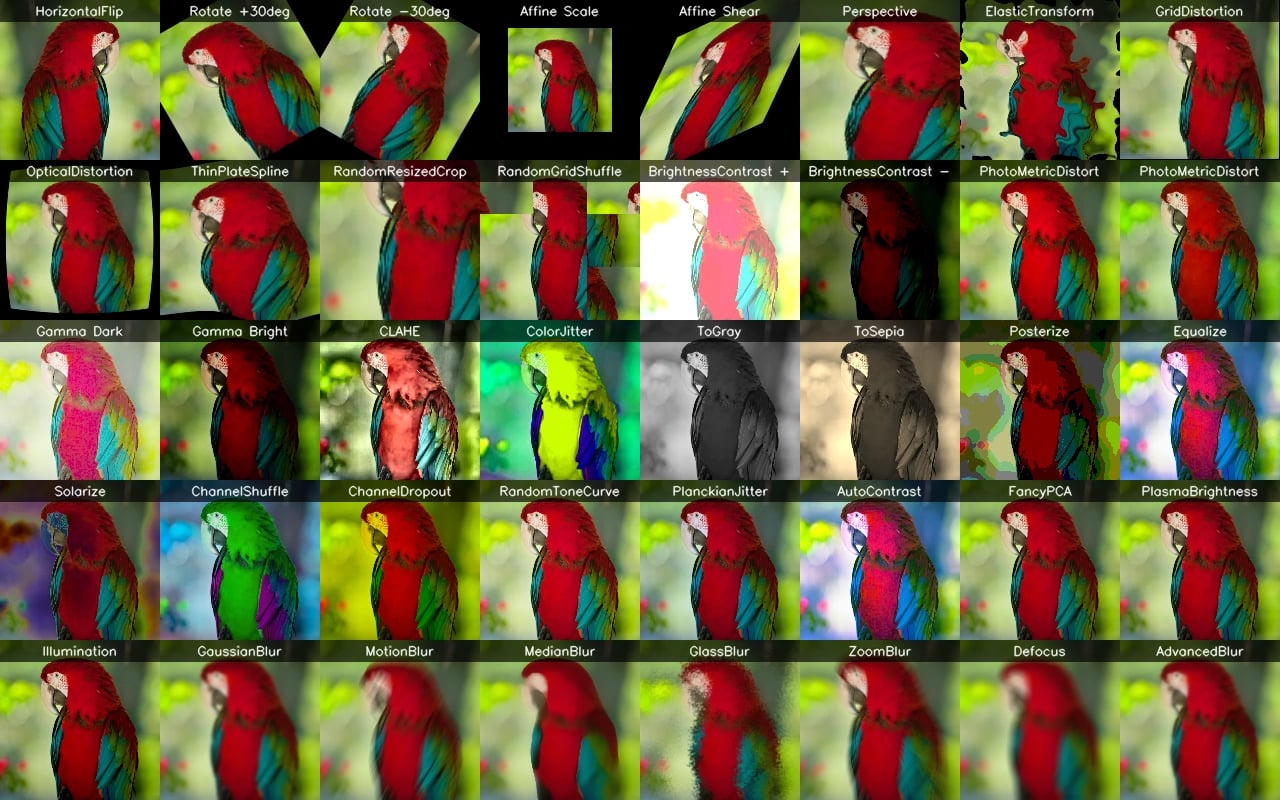

Here are some common categories of image augmentations:

  1. Geometric Transformations: These alter the spatial properties of the image.

    • Flips: Horizontal (HorizontalFlip) and Vertical (VerticalFlip) flips are simple yet often very effective, especially if there's no inherent top/bottom or left/right orientation preference in the data (e.g., general object classification).
    • Rotations: Rotate or RandomRotate90 help the model become invariant to object orientation.
    • Scaling: RandomScale, Resize. Makes the model robust to objects appearing at different sizes.
    • Translation: Shifting the image content horizontally or vertically (Affine). Helps the model find objects regardless of their exact position.
    • Shear: Tilting the image along an axis (Affine). Simulates viewing objects from different angles slightly.
    • Perspective: Applying perspective distortion (Perspective). Can simulate viewing planar surfaces from different viewpoints.
    • Elastic Deformations & Distortions: ElasticTransform warps the image locally, often useful for medical images. Other spatial distortions like GridDistortion exist as well.

  2. Color Space Transformations: These modify the color characteristics of the image.

    • Brightness/Contrast: RandomBrightnessContrast. Simulates varying lighting conditions.
    • Gamma Correction: RandomGamma. Adjusts image intensity non-linearly, also good for lighting variations.
    • Hue/Saturation/Value: HueSaturationValue. Adjusts the color shades, intensity, and brightness, making the model less sensitive to specific color palettes.
    • Grayscale Conversion: ToGray. Forces the model to rely on shapes and textures rather than color.
    • Channel Shuffling: ChannelShuffle. Randomly reorders the R, G, B channels. A more disruptive augmentation.

  3. Noise and Blurring: These simulate imperfections in image capture or transmission.

  4. Random Erasing / Occlusion: These techniques randomly remove or obscure parts of the image. This forces the model to learn from the remaining context and prevents it from relying too heavily on any single feature.

    • The concept is often called "Cutout". Albumentations implementations include CoarseDropout (removes rectangular regions), GridDropout (removes grid points), and MaskDropout (removes regions based on masks).

  5. Weather & Environmental Effects: Simulates different real-world conditions.

  6. Mixing Images: Some advanced techniques combine information from multiple images.

    • MixUp: Creates new samples by taking a weighted linear interpolation of pairs of images and their labels.
    • CutMix: Cuts a patch from one image and pastes it onto another, with labels mixed proportionally to the area of the patches.
    • Mosaic: Combines four training images into one larger image, resizing them and placing them in a 2x2 grid. This exposes the model to objects at different scales and contexts, and smaller objects become relatively larger.
    • Copy-Paste: Copies object instances (usually with their segmentation masks) from one image and pastes them onto another, often used for instance segmentation or detection to increase the number of object instances per image. (Note: Techniques like MixUp, CutMix, Mosaic, and Copy-Paste often require specific handling of labels and batching logic. While some components might be implementable with Albumentations, they are frequently integrated directly into the data loading or training loop rather than being standalone transforms applied to single images).

How Augmentations Create Data Variety 🔗

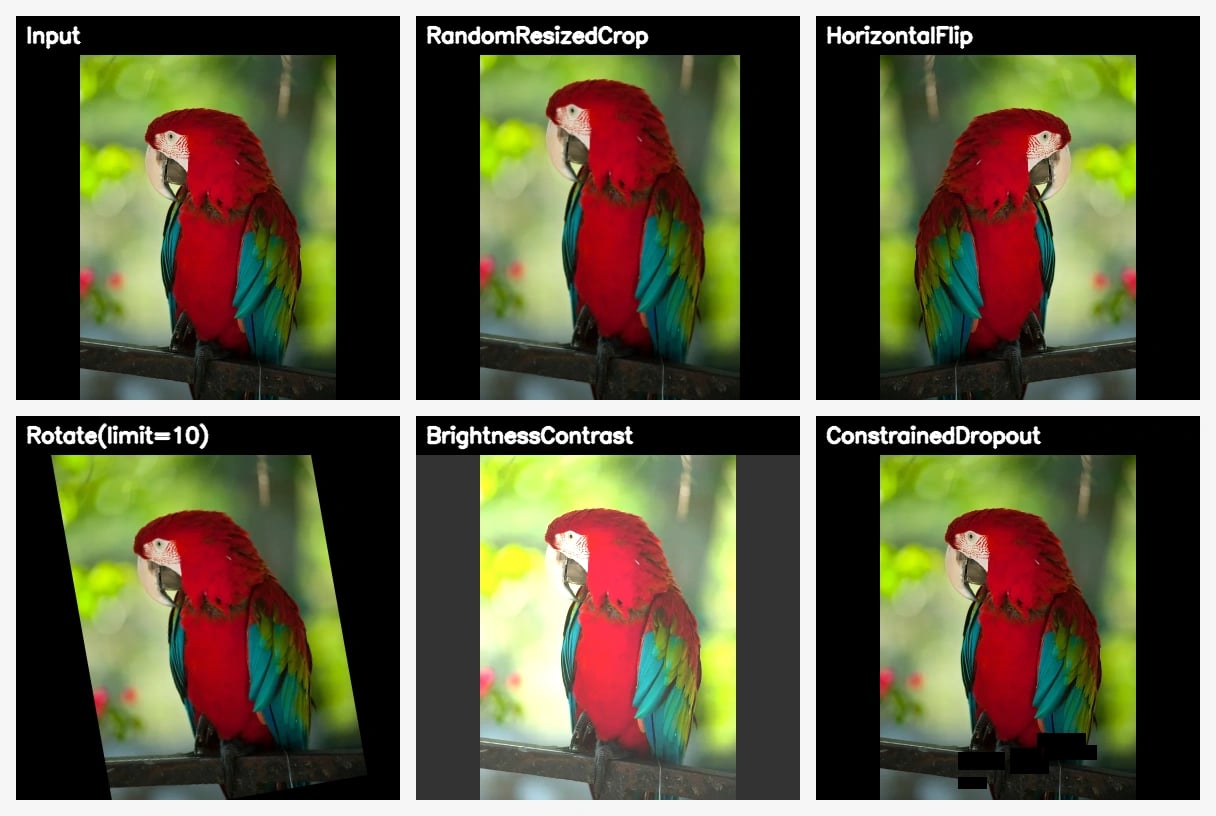

It's important to understand how combining even simple augmentations can dramatically increase the effective size and diversity of your dataset. Each augmentation added to a pipeline acts multiplicatively on the potential variations.

  • Adding just HorizontalFlip (with p=1) effectively doubles (x2) your dataset size, as each image now has its original and flipped version.
  • If you then add RandomRotate90 (which applies 0, 90, 180, or 270-degree rotations), you multiply the possibilities by four (x4). Combined with the flip, you now have 2 * 4 = 8 potential geometric variations for each original image.
  • Adding a continuous transformation like Rotate(limit=10) introduces a vast number of potential small rotations. If you also add RandomBrightnessContrast, the number of possible distinct outputs explodes further.

For pipelines commonly used in practice, especially by advanced users, the number of possible unique augmented outputs for a single input image becomes astronomical. This means that during training, the model almost never sees the exact same input image twice. It's constantly presented with slightly different variations, forcing it to learn more robust and general features.

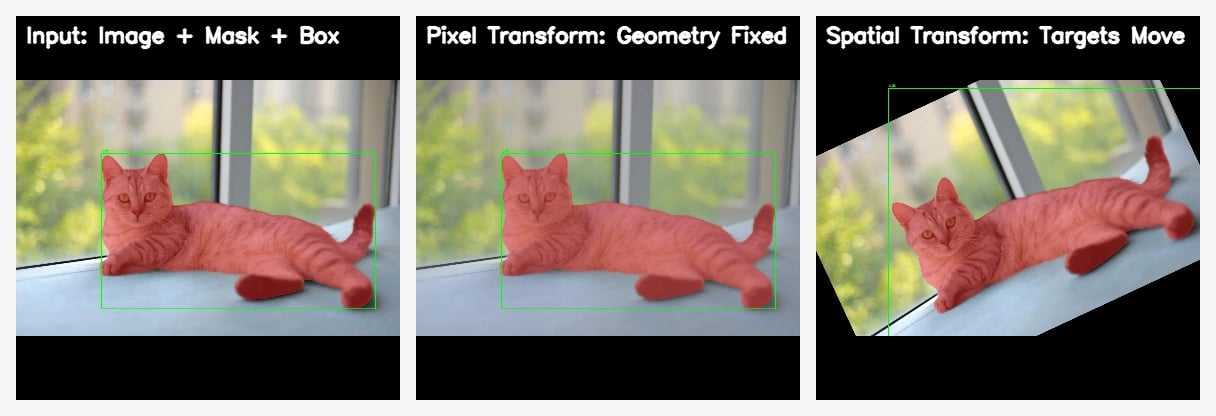

The Crucial Role of Synchronization: Augmenting Targets

In many computer vision tasks, you're not just working with an image; you also have associated targets or labels that describe the image content. When you apply a geometric augmentation to an image (like a rotation or flip), you must apply the exact same transformation to its corresponding targets to maintain correctness. Color augmentations generally only affect the image itself.

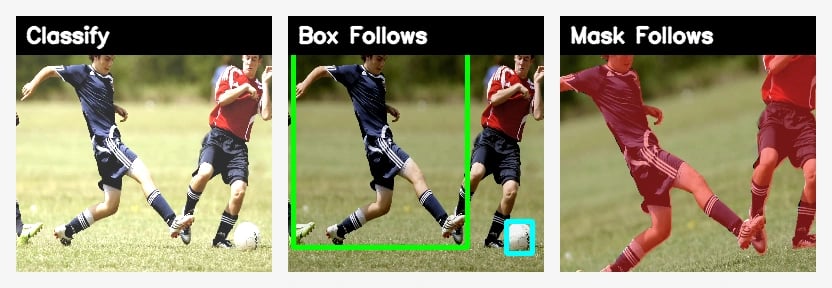

Here's how targets are typically handled for common tasks:

  • Classification: Usually, only the image is transformed. The class label (e.g., "dog") remains the same after flipping or rotating a dog image. (Albumentations target: image)
  • Object Detection: If you rotate the image, the bounding boxes must also be rotated around the correct center point. If you scale the image, the bounding box coordinates must be scaled. If you flip the image, the box coordinates must be flipped accordingly. (Albumentations targets: image, bboxes)
  • Semantic Segmentation: The segmentation mask is essentially a pixel-level label map. Any geometric warp, rotation, flip, or crop applied to the image must be applied identically to the mask. (Albumentations targets: image, mask)

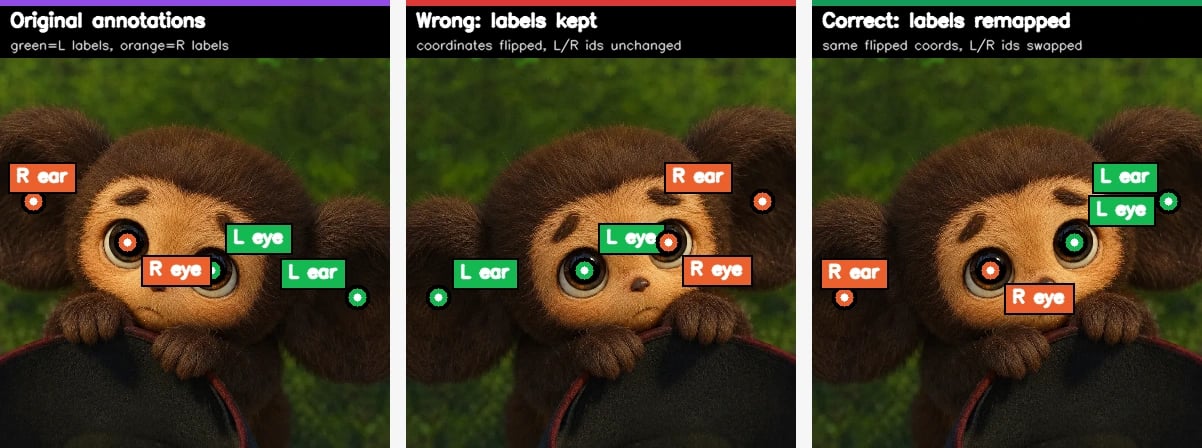

  • Keypoint Detection: Keypoint coordinates (e.g., locations of facial features) must be transformed geometrically just like the image pixels. (Albumentations targets: image, keypoints)
  • Instance Segmentation: This task often combines masks and bounding boxes, requiring transformations to be consistent across all of them. (Albumentations targets: image, mask, bboxes)

Handling this synchronization manually can be complex and error-prone. A major advantage of libraries like Albumentations is that they are designed to handle this automatically. When you define a pipeline and pass your image along with its corresponding masks, bounding boxes, or keypoints using the correct arguments (e.g., transform(image=img, mask=mask, bboxes=bboxes, keypoints=keypoints)), the library ensures that all specified targets are transformed consistently with the image according to the rules of each augmentation.

Conclusion 🔗

Data augmentation, particularly image augmentation, is an indispensable tool in the modern computer vision toolkit. It helps bridge the gap caused by limited data, pushes models to learn more robust and generalizable features, and ultimately leads to better performance on real-world tasks.

While the concept is simple, effective implementation requires understanding your task and data, choosing appropriate transformations, and carefully managing the synchronization between images and their associated targets. Libraries like Albumentations help simplify this process, allowing developers to easily define and apply complex augmentation pipelines while ensuring target consistency.
