The Art and Science of Dithering: How We Taught Computers to Lie About Colors (And Why That's Beautiful)
New in AlbumentationsX v2.0.10: The complete dithering transform is now available, bringing decades of image processing history to your augmentation pipeline.
Imagine you're a painter, but you can only use black and white paint. No gray. No mixing. Just pure black and pure white. How would you paint a sunset? A portrait? The subtle gradations of light on a cloudy day?

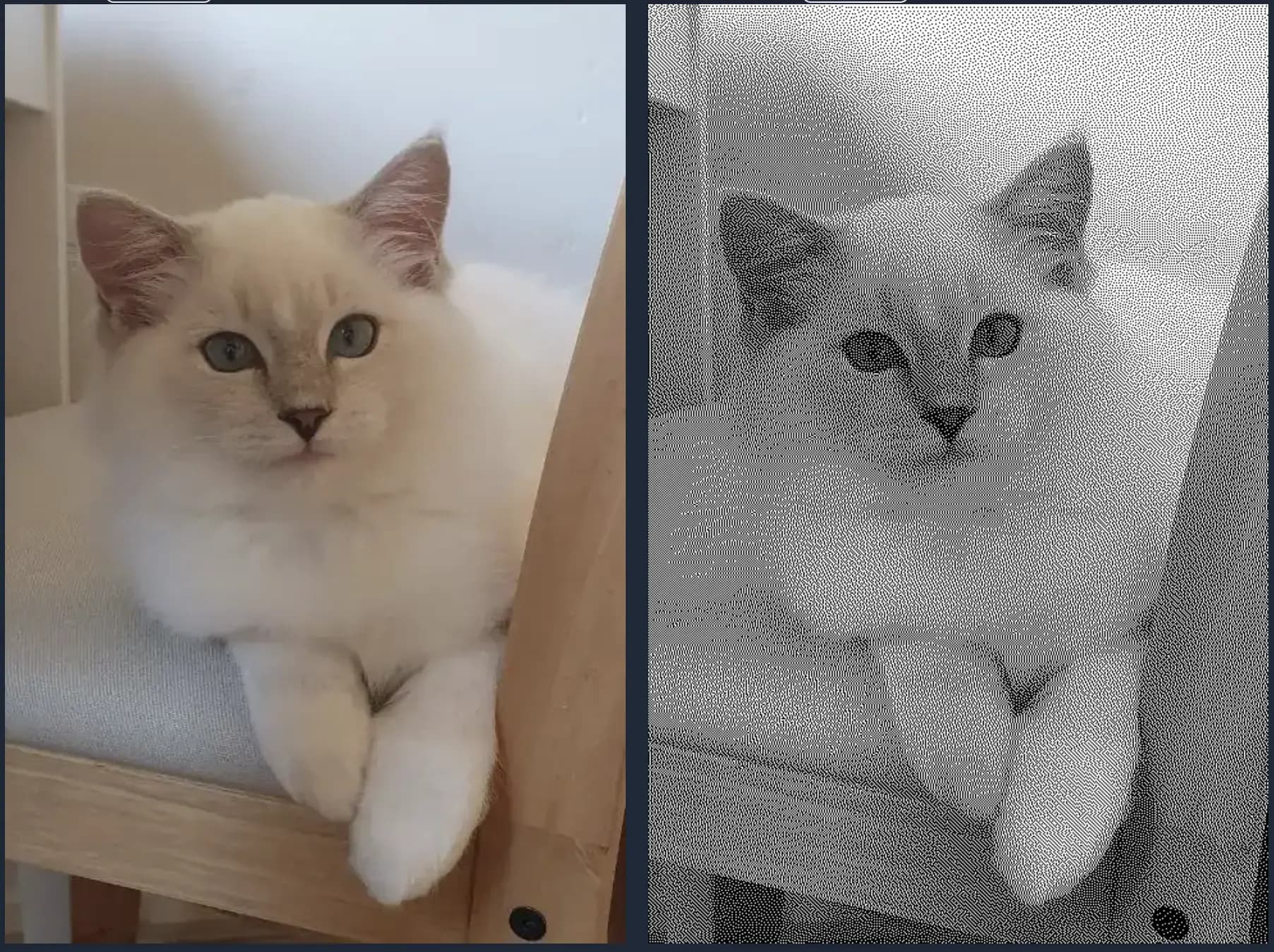

This is the essence of dithering - a masterful optical illusion that creates the impossible. Take just a handful of colors - perhaps only black and white, or maybe 4, 8, or 16 carefully chosen shades - and through clever arrangement, your eyes will perceive a much richer spectrum of variations. These intermediate shades don't actually exist at the pixel level. Each pixel can only be one of your limited palette colors. But due to how our visual system processes information, the illusion is so convincing that we see smooth gradients, subtle shadows, and delicate highlights where there are only patterns of quantized values.
The classic example uses just 2 colors: pure black (0) and pure white (255). Your brain interprets different patterns of these dots as various shades of gray. But dithering works with any number of colors - 4 levels create a retro computer aesthetic, 16 levels give you rich artistic effects, and even reducing from millions of colors down to 256 can benefit from dithering's smoothing magic.
This was exactly the challenge faced by early computer engineers and newspaper printers. Their solution was so elegant, so clever, that it became one of the fundamental techniques in digital imaging. They called it dithering, and it's a story of how we taught machines to create illusions so convincing that our own eyes willingly participate in the deception.
The Newspaper Revolution That Started It All 🔗
Before we dive into pixels and algorithms, let's travel back to the 1880s. Newspapers had a problem: they could only print solid black ink on white paper. Yet readers demanded photographs - real photographs! - not just line drawings and text.
The solution came from an unlikely source: Georg Meisenbach, a German inventor who in 1882 patented the autotype, the first commercial halftone process. His breakthrough? Instead of trying to print different shades of gray (which was impossible), he broke images into tiny dots. Where the image was dark, the dots were large and close together. Where it was light, they were small and far apart.
Stand close to an old newspaper photograph, and you see the dots. Step back, and magic happens - your brain blends them into a continuous image with all the shades of gray you could want. The newspaper wasn't printing gray at all. It was printing a pattern that suggested gray, and your visual system did the rest.
This principle - that patterns of limited colors can create the illusion of many more colors - would become the foundation of digital dithering decades later.
Enter the Digital Age: When Computers Learned to Dither 🔗
Fast forward to 1961. MIT graduate student Lawrence G. Roberts was working on his master's thesis when he encountered a familiar problem. Early computers could only display a limited number of brightness levels - often just black and white. How could they display photographs?
Roberts had a radical idea: what if, instead of trying to eliminate the quantization errors that came from reducing colors, we embraced them? What if we added controlled noise to the image before quantization?
His insight was brilliant. By adding carefully calculated random noise, the harsh boundaries between different brightness levels would dissolve into a granular pattern that looked, paradoxically, more natural than the "clean" quantized image. This was the birth of digital dithering.
But Roberts' approach was just the beginning. The real revolution came in 1976.
Floyd and Steinberg's Beautiful Algorithm 🔗
Robert W. Floyd was a computer scientist at Stanford, known for his work on algorithms. Louis Steinberg was a researcher at Bell Labs. Together, they created what would become the most famous dithering algorithm in history: Floyd-Steinberg dithering.
Their insight was deceptively simple yet profound. When you're forced to round a pixel to black or white, you create an error - the difference between what the pixel should be and what you made it. Instead of throwing this error away, why not give it to the neighboring pixels?
Here's how it works: Imagine you have a pixel that should be 40% gray, but you can only make it black (0%) or white (100%). You choose black, but now you have an error of 40%. The Floyd-Steinberg algorithm takes this error and distributes it:
- 7/16 of it goes to the pixel on the right
- 3/16 goes to the pixel below and to the left
- 5/16 goes to the pixel directly below
- 1/16 goes to the pixel below and to the right
As you process each pixel from left to right, top to bottom, errors cascade through the image like a controlled avalanche. The result? An image that preserves the original's brightness and detail, even though each pixel is only black or white.
The algorithm was so elegant that it became the gold standard. Even today, nearly 50 years later, Floyd-Steinberg dithering is built into image editing software worldwide.
The Macintosh Revolution: Bill Atkinson's Artistic Touch 🔗
In 1983, a young programmer named Bill Atkinson was working on something that would change computing forever: the graphics system for the original Apple Macintosh. The Mac would have a graphical user interface, something almost unheard of in personal computers. But it faced a stark limitation: the display was strictly black and white. No gray pixels at all.
Atkinson knew about Floyd-Steinberg dithering, but he had his own ideas. The Floyd-Steinberg algorithm preserved overall brightness perfectly, but Atkinson noticed something: it could make images look a bit dark and muddy, especially on the Mac's small screen.
His solution was radical: instead of distributing 100% of the error to neighboring pixels, he only distributed 75%. The remaining 25% simply vanished. This was heretical - you were literally throwing away information! But the result was magical. Images appeared lighter, crisper, with better contrast. Shadows didn't muddy together, and highlights stayed bright.
The Atkinson dithering algorithm became part of the Mac's QuickDraw graphics system and HyperCard, influencing an entire generation of computer graphics. Sometimes, Atkinson proved, imperfection is more perfect than perfection itself.
The Matrix Has You: Ordered Dithering and the Bayer Pattern 🔗
While error diffusion algorithms like Floyd-Steinberg created beautiful, organic-looking results, they had a drawback: they were slow. For real-time graphics and video games, something faster was needed.
Enter Bryce Bayer, a scientist at Eastman Kodak. In 1973, Bayer developed a different approach: instead of diffusing errors, use a fixed pattern - a matrix - to decide which pixels become black and which become white.
The Bayer matrix is a thing of mathematical beauty. The smallest version is just 2×2:
0 2
3 1
But it can be recursively expanded to 4×4, 8×8, and beyond, each maintaining special properties that distribute the thresholds evenly across the space. When you apply this matrix to an image, comparing each pixel's brightness to the corresponding matrix value, you get a distinctive crosshatch pattern.
Ordered dithering was perfect for early computer graphics. It was fast, predictable, and could be implemented in hardware. The characteristic crosshatch pattern became an aesthetic in its own right, synonymous with retro computer graphics. Games like Prince of Persia and King's Quest used ordered dithering to create rich worlds from limited color palettes.
The Modern Renaissance: Dithering as Art 🔗
Fast forward to 2018. Game developer Lucas Pope releases "Return of the Obra Dinn," a murder mystery set on a ghost ship. In an era of photorealistic graphics and ray tracing, Pope made a bold choice: the entire game would be rendered in 1-bit color, using dithering to create all shading and depth.
The result was stunning. The harsh black and white aesthetic, processed through carefully tuned dithering algorithms, created an atmosphere that full color could never achieve. The game won numerous awards and proved that dithering wasn't just a technical necessity of the past - it was an artistic tool for the future.
This renaissance extends beyond games. Modern artists use dithering to create everything from NFT collections to album covers. The technique that was born from limitation has become a deliberate aesthetic choice, evoking nostalgia while creating something entirely new.
The Science Behind the Magic: Why Dithering Works 🔗
To understand why dithering works so well, we need to understand how human vision processes information. Our eyes don't see individual pixels - they integrate information over areas. This is called spatial integration, and it's why a field of alternating black and white pixels appears gray from a distance.
But there's more to it. Our visual system is incredibly good at detecting edges and boundaries, but relatively poor at detecting gradual changes in texture. Dithering exploits this by replacing smooth gradients (which would show obvious bands when quantized) with high-frequency texture (which our eyes naturally blur together).
There's also temporal dithering - rapidly alternating between colors over time. Old CRT monitors used this trick, and modern displays still use temporal dithering to simulate higher color depths than their hardware supports. Your 6-bit laptop display showing millions of colors? That's temporal dithering at work, switching colors so fast your eye sees the average.
Beyond Images: Dithering in Audio and Beyond 🔗
The principle of dithering extends far beyond images. In digital audio, dithering is crucial when reducing bit depth. Without it, quiet passages in music would be plagued by quantization distortion - a harsh, buzzing quality. By adding a tiny amount of noise (typically shaped to be less audible), audio engineers can preserve the subtlety of a performance even when reducing file sizes.
There are even more exotic applications. Analog-to-digital converters use dithering to achieve resolutions beyond their hardware limitations. Some mechanical systems use physical dithering - tiny vibrations - to prevent static friction. The Mars rovers use dithering in their drilling operations to prevent getting stuck.
The Algorithms: A Deeper Dive 🔗
Let's explore the major dithering algorithms that have shaped digital imaging:
Error Diffusion Family 🔗
Floyd-Steinberg (1976): The classic. Distributes error to 4 neighbors with weights 7/16, 3/16, 5/16, 1/16. Fast and effective.
Jarvis-Judice-Ninke (1976): Distributes error to 12 neighbors, creating smoother results but requiring 3x more computation than Floyd-Steinberg.
Stucki (1981): Also uses 12 neighbors but with different weights, optimized for print reproduction.
Burkes (1988): A compromise between Floyd-Steinberg and Jarvis, using 7 neighbors. Faster than Jarvis, smoother than Floyd-Steinberg.
Sierra (1989): Uses 10 neighbors with carefully chosen weights. Created by Frankie Sierra for the game King's Quest.
Sierra-2-row: A simplified version using only 2 rows of pixels, making it more cache-friendly on modern processors.
Sierra-Lite: The minimal version with just 3 neighbors, extremely fast while maintaining reasonable quality.
Ordered Dithering Variations 🔗
Bayer Matrix: The classic ordered dithering using recursive matrices. Sizes of 2×2, 4×4, 8×8, and 16×16 are common.
Blue Noise: Uses specially crafted patterns that have a more organic, less regular appearance than Bayer matrices.
Void and Cluster: Iteratively builds patterns by finding the largest voids and clusters, creating very even distributions.
Halftone Patterns: Simulates traditional printing halftones with dot patterns at various angles.
Specialized Techniques 🔗
Riemersma Dithering: Follows a space-filling curve (like Hilbert curve) through the image, reducing directional artifacts.
Error Diffusion with Serpentine Scanning: Processes alternating rows in opposite directions, reducing the "worm" artifacts that can appear in standard error diffusion.
Dot Diffusion: A hybrid between ordered dithering and error diffusion, processing pixels in a specific order based on a matrix.
Try It Yourself: Interactive Dithering Playground 🔗
Want to see these algorithms in action? We've created an interactive tool where you can upload your own images and experiment with every dithering algorithm mentioned in this article. No coding required - just drag, drop, and play!
🎨 Try the Interactive Dithering Tool →
Upload any image and watch as Floyd-Steinberg creates organic patterns, Atkinson brightens your photos with that classic Mac aesthetic, or ordered dithering adds those distinctive crosshatch patterns. You can adjust the number of colors, switch between algorithms, and see the results instantly.
Perfect test images to try:
- Portraits: Show how error diffusion preserves facial features while ordered dithering creates artistic effects
- Sunsets/landscapes: Demonstrate how different algorithms handle smooth gradients
- Architecture: Reveal how fine details are preserved or transformed
- Close-up textures: See how algorithms handle high-frequency information
Implementing Dithering in Code 🔗
For developers, Albumentations makes it easy to integrate these historical algorithms into your computer vision pipelines:
import albumentations as A
import numpy as np
# Create a sophisticated dithering pipeline
transform = A.Compose([
A.Dithering(
method="error_diffusion",
n_colors=4, # Simulate 2-bit display
error_diffusion_algorithm="atkinson", # That Mac aesthetic
serpentine=True, # Reduce directional artifacts
color_mode="per_channel", # Maintain color relationships
p=1.0
)
])
# Apply to your image
result = transform(image=image)
dithered = result['image']
The ability to switch between algorithms, adjust parameters, and combine dithering with other augmentations opens up new possibilities for data augmentation, artistic processing, and robustness testing.
The Philosophy of Dithering: Embracing Imperfection 🔗
There's something profound about dithering that goes beyond its technical merits. It's a reminder that perfection isn't always the goal - sometimes the artifacts, the noise, the imperfections are what make something beautiful.
Dithering teaches us that limitations can spark creativity. The early computer artists who couldn't afford more than 16 colors created masterpieces that we still admire today. The newspaper photographers who only had black ink created images that moved nations.
It shows us that perception is collaborative. The image isn't complete on the screen or page - it's completed in your visual system, in the miraculous way your brain integrates and interprets patterns. Every dithered image is a partnership between the algorithm and the observer.
Applications in Modern Machine Learning 🔗
As we train neural networks on increasingly diverse data, dithering becomes relevant in new ways:
Robustness Testing: How well does your model handle images from old systems or compressed formats that use dithering?
Data Augmentation: Dithering can simulate various capture and display conditions, making models more robust to real-world variations.
Model Compression: Some researchers use dithering-inspired techniques to quantize neural network weights while maintaining performance.
Adversarial Defense: The high-frequency patterns introduced by dithering can sometimes defend against adversarial attacks that rely on imperceptible perturbations.
Artistic Style Transfer: Dithering effects can be learned and transferred, creating new artistic possibilities.
The Future of Dithering 🔗
As we move toward displays with billions of colors and cameras with incredible dynamic range, you might think dithering would become obsolete. But the opposite is happening.
High Dynamic Range (HDR) displays use sophisticated temporal dithering to achieve their full color gamut. Machine learning models use dithering-inspired techniques for quantization. Artists are rediscovering dithering as a deliberate aesthetic choice. Even modern printers, despite having multiple ink colors, still rely on sophisticated halftoning algorithms descended from classical dithering.
Virtual and Augmented Reality present new challenges where dithering might provide solutions. How do you display high-quality images on low-power, mobile VR headsets? How do you compress the massive amounts of data needed for light field displays? The principles of dithering - trading spatial or temporal resolution for color depth - remain relevant.
Conclusion: The Eternal Dance of Limitation and Creativity 🔗
Dithering is more than an algorithm or a technique. It's a testament to human ingenuity - our ability to turn limitations into advantages, constraints into creativity. From Georg Meisenbach's halftone dots to modern pixel art masterpieces, dithering has been there, quietly making the impossible possible.
The next time you see an old newspaper photograph, a retro video game, or even a modern gradient on a display, remember: you're looking at one of computing's most elegant hacks. You're seeing the result of decades of innovation, all aimed at one simple goal: making computers lie about colors so convincingly that we believe them.
And in that beautiful lie, there's a deeper truth about perception, creativity, and the endless human drive to create beauty from limitation. Dithering isn't just about pixels and patterns - it's about the art of illusion, the science of perception, and the magic that happens when the two combine.
As you experiment with dithering in your own work - whether through Albumentations' new transforms or other tools - remember that you're participating in a tradition that spans centuries. From newspaper halls to Silicon Valley, from Bell Labs to indie game studios, dithering connects us all in the eternal quest to show more than we can display, to express more than our medium allows, to create beauty from the simplest of elements.
The patterns may be simple - black and white, on and off, zero and one - but the possibilities are infinite. That's the true magic of dithering: it shows us that with enough creativity, even the starkest limitations can become the seeds of something beautiful.
Ready to create your own dithered masterpieces?
🎨 Try the Interactive Dithering Tool - Upload your images and experiment with every algorithm from this article in real-time
📚 Read the Technical Documentation - Integrate dithering into your Python projects
From Floyd-Steinberg's organic patterns to Atkinson's high-contrast aesthetic, from ordered dithering's crosshatches to modern error diffusion variants - the entire history of dithering is now at your fingertips. Whether you're creating art, augmenting data, or just curious about how these algorithms work, start experimenting today!
References 🔗
- Floyd, R.W. and Steinberg, L. (1976). "An adaptive algorithm for spatial gray scale". Proceedings of the Society of Information Display 17, 75–77.
- Roberts, L. (1961). "Picture Coding Using Pseudo-Random Noise". MIT Master's Thesis.
- Bayer, B.E. (1973). "An optimum method for two-level rendition of continuous-tone pictures". IEEE International Conference on Communications.
- Atkinson, B. (1983). Internal documentation, Apple Computer.
- Jarvis, J.F., Judice, C.N., and Ninke, W.H. (1976). "A survey of techniques for the display of continuous tone pictures on bilevel displays". Computer Graphics and Image Processing 5, 13–40.
- Meisenbach, G. (1882). German patent for autotype halftone process.
- Pope, L. (2018). "Return of the Obra Dinn". Game Developer's Conference presentation on 1-bit rendering.
- Ulichney, R. (1987). "Digital Halftoning". MIT Press.
